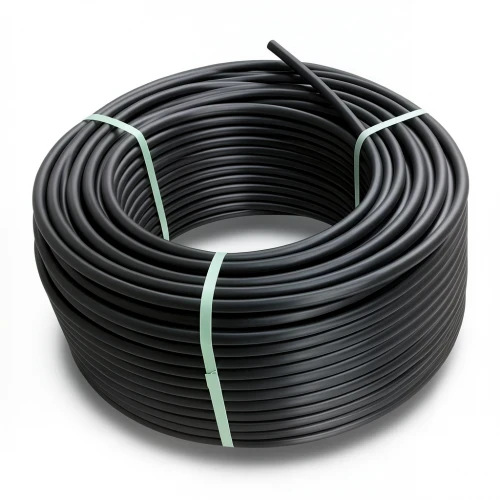

HDPE Coil Pipe Working Pressure 16 Bar [PE 100] Outer Diameter 50 mm SDR 11 Color Black | Almona Company
(37 Product Views)
Product description
These HDPE coil pipes from Almona Company are engineered for reliable water transportation networks, meeting the demands of Qatar's infrastructure projects. Manufactured from high-density polyethylene (PE100), they offer exceptional strength, durability, and resistance to corrosion, ensuring long service life even in harsh environments.
With a working pressure of 16 bar and an SDR 11 rating, these pipes are suitable for a wide range of applications, including potable water supply, irrigation, and industrial systems. Their lightweight nature simplifies handling, transport, and installation compared to traditional piping materials, reducing project timelines and labor costs.
Available in convenient coil lengths, these pipes are perfect for both urban developments in Doha and remote sites across Al Rayyan and Al Wakrah, adapting to Qatar's varying terrain and climate.
Key Features
- Working pressure: 16 bar (PN 16)
- Outer diameter: 50 mm
- Standard dimensional ratio: SDR 11
- Material grade: PE100 (high-density polyethylene)
- Color: Black
- Minimum required strength (MRS): 10 MPa
- Design stress: 8 MPa, safety factor C=1.25
- Manufactured according to ISO 4427-2
- Available in coil lengths: 100m, 200m, 300m, up to 1500m (for sizes 16-32mm); 100m coils for sizes 40-160mm
