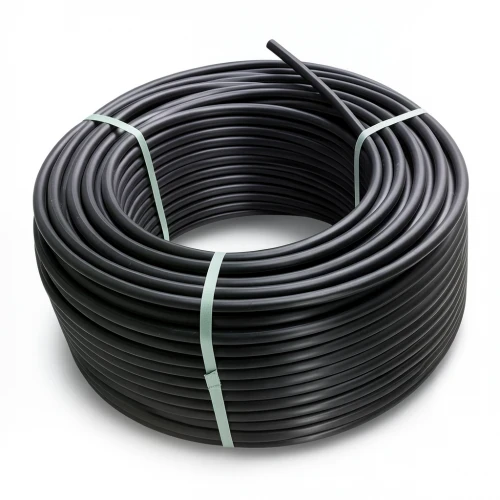

HDPE Coil Pipe Working Pressure 12.5 Bar [PE 100] Outer Diameter 90 mm SDR 13.6 Color Black | Almona Company

Introducing the HDPE coil pipe from Almona Company, engineered for reliable water transportation in Qatar's demanding climate. Manufactured from high-density polyethylene (PE100), this pipe delivers exceptional strength, durability, and long-term performance.

Designed to withstand high operating pressures up to 12.5 bar (SDR 13.6), this pipe resists breakage, chemical corrosion, and harmful UV rays, making it ideal for outdoor installations across Doha, Al Rayyan, and Al Wakrah. Its ability to handle high temperatures ensures consistent flow even during peak summer conditions.

Compliant with ISO 4427-2, this pipe is suitable for potable water supply, irrigation, and industrial applications. Available in convenient coil lengths for easy handling and installation.

Key Features

• Outer diameter: 90 mm
• Wall thickness: 6.7 mm
• Standard dimension ratio: SDR 13.6
• Working pressure: 12.5 bar
• Pipe series (S): 6.3
• Material grade: PE100
• Color: Black
• Minimum required strength (MRS): 10 MPa
• Design stress (σs): 8 MPa
• Design safety factor: C=1.25
• Length: Coils of 100 m, 200 m, 300 m up to 1500 m (sizes 16–32 mm); 100 m coils (sizes 40–160 mm)
• Manufactured according to ISO 4427-2
