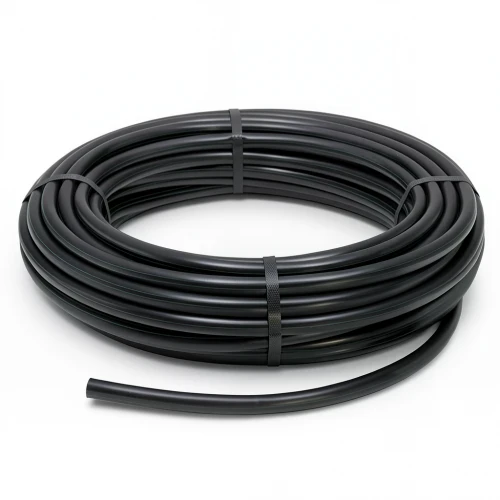

HDPE Coil Pipe PN 9.8 Bar [PE 63] Outside Diameter 160 mm SDR 9 Color Black | Almona Company
(33 Product Views)
Product description
Our HDPE coil pipe, manufactured by Al-Mona Company, is engineered for demanding water and irrigation applications. Made from high-density polyethylene (PE 63) and produced to DIN 8074/8075 standards, this pipe offers exceptional durability and long-lasting performance, even under high water pressure.
Key Features
- Pressure rating: 9.8 bar (PN 9.8)
- Outside diameter: 160 mm
- Wall thickness: 17.9 mm
- Weight: 7.96 kg/m
- Standard dimensional ratio: SDR 9
- Pipe series (S): 4
- Material grade: PE 63
- Color: Black
- Minimum Required Strength (MRS): 6.3 MPa
- Design stress (σs): 3.94 MPa
- Design safety factor: C=1.6
- Manufactured according to: DIN 8074/8075
Applications in Qatar
Ideal for water distribution networks, irrigation systems, and industrial piping across Qatar—from Doha to Al Rayyan and Al Wakrah. With a maintenance-free lifespan of 50 years, these pipes withstand harsh local conditions, including high temperatures and soil salinity, ensuring reliable performance in both urban and agricultural projects.
Available in coil lengths: 100, 200, 300 meters (up to 1500 meters for sizes 16-32 mm) and 100-meter coils for sizes 40-160 mm. Choose the length that fits your project needs.
