HDPE Coil Pipe PN 6 Bar [PE 63] OD 140 mm SDR 17.6 Color Black | Almona Company

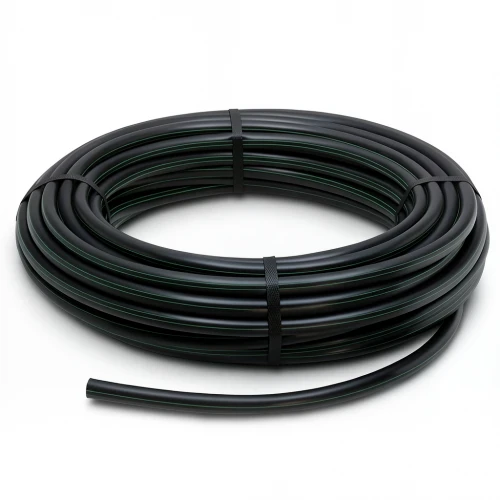

This HDPE coil pipe, manufactured by Al Mona Company, is a reliable solution for irrigation and water conveyance systems across Qatar. Made from high-density polyethylene (PE 63), it offers exceptional durability and long-lasting performance, even under the harsh Qatari climate.

Key Features

• Outside diameter: 140 mm
• Wall thickness: 8.0 mm
• Material weight: 3.34 kg/m
• Standard dimensional ratio (SDR): 17.6
• Pressure rating: 6 bar (PN 6)
• Pipe series (S): 8.3
• Material grade: PE 63
• Color: Black
• Minimum Required Strength (MRS): 6.3 MPa
• Design stress (σs): 5.04 MPa
• Design safety factor: C=1.25
• Manufactured according to DIN 8074/8075

Applications in Qatar

These pipes are widely used for agricultural irrigation, landscaping projects, and municipal water supply networks in Doha, Al Rayyan, and Al Wakrah. Their resistance to UV radiation and high pressure makes them suitable for both surface and buried installations.

Length Options

Available in coils of 100, 200, 300 meters, up to 1500 meters for sizes from 16 mm to 32 mm. For sizes from 40 mm to 160 mm, coils are supplied in 100-meter lengths.
