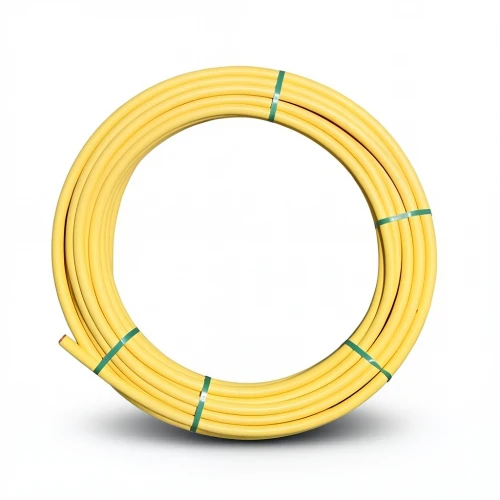

HDPE Coil Pipe Nominal Pressure 4.8 Bar [PE 80] OD 63 mm Thickness 3.6 mm Color Yellow | Almona Factory

These HDPE coil pipes, manufactured by Al-Mona factory, are engineered for reliable gas and fuel supply transportation networks. With an outer diameter of 63 mm and a nominal pressure of 4.8 bar, they meet the demands of modern infrastructure projects throughout Qatar, from Doha to Al Rayyan and beyond. The PE80 grade high-density polyethylene ensures long-term durability, resistance to corrosion, and the ability to withstand high temperatures and pressures, making them a trusted choice for utility contractors and developers.

Key Features

• Outside diameter: 63 mm
• Standard dimension ratio: SDR 17.6
• Material grade: PE 80
• Nominal pressure: 4.8 bar
• Wall thickness: 3.6 mm
• Weight: 0.69 kg/m
• Minimum Required Strength (MRS): 10 MPa
• Design stress (σs): 5 MPa
• Design safety factor: C=2
• Color: Yellow (international gas identification)
• Available in coils of 100, 200, 300 meters up to 1500 meters for sizes 16 mm to 32 mm; 100-meter coils for sizes 40 mm to 160 mm

Compliant with ISO 4437, these pipes are suitable for buried gas pipelines, industrial fuel lines, and other high-integrity applications. Their flexibility and coil packaging simplify handling and installation, reducing the need for joints and fittings—ideal for Qatar's fast-paced construction sector. Whether for new residential districts or commercial complexes, these HDPE coils deliver performance and peace of mind.
