HDPE Coil Pipe Nominal Pressure 10 Bar [PE 80] OD 110 mm SDR 13.6 Color Black | Almona Factory

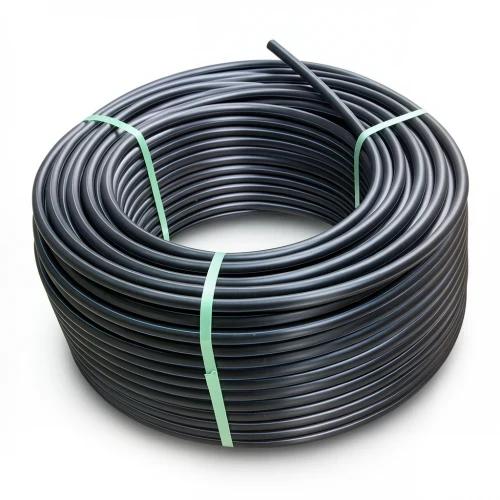

This HDPE coil pipe, manufactured by Almona Factory in accordance with ISO 4427-2, is a reliable solution for water transportation and distribution systems. Made from high-density polyethylene (PE 80), it offers exceptional strength, durability, and resistance to corrosion, making it suitable for the demanding conditions of Qatar's infrastructure projects.

Key Features

• Outer diameter: 110 mm
• Standard dimension ratio (SDR): 13.6
• Material grade: PE 80
• Nominal pressure: 10 bar
• Wall thickness: 8.1 mm
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Color: Black
• Length: Available in coils of 100, 200, and 300 meters, up to 1500 meters (for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Applications in Qatar

Ideal for potable water supply lines, irrigation systems in agricultural projects (e.g., in Al Khor and Al Shamal), and industrial fluid transfer. Its flexibility and coil form make it easy to transport and install, reducing the need for fittings and joints—a significant advantage in Qatar's extensive development projects.
