Stranded Copper Wire Heat Resistant PVC Insulation, 25mm Size, 450/750volts | Alfanar
(31 Product Views)
Product description

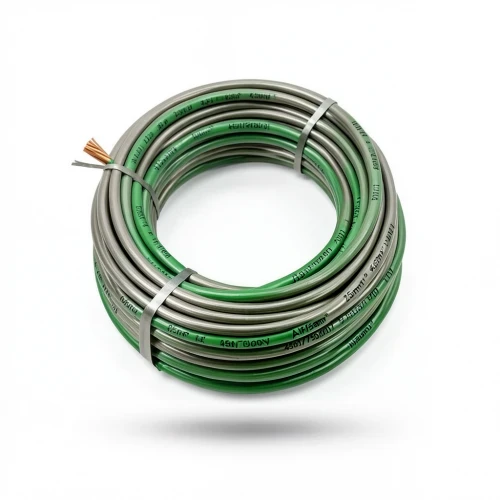

This Alfanar stranded copper wire is engineered for reliable and safe electrical installations across Qatar. With a 25 mm² cross-section and 450/750V rating, it meets the demands of modern building standards in Doha, Al Rayyan, and Al Wakrah, where consistent power distribution is critical.
The conductor is made of high-purity stranded copper, offering excellent conductivity and flexibility for easier handling during installation. The heat-resistant PVC insulation (rated up to 90°C) provides robust protection against electrical leakage, mechanical abrasion, and moisture, ensuring long-term durability in Qatar's hot and humid climate.
Compliant with BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3 standards, this wire is suitable for fixed internal wiring in control panels, machinery, lighting circuits, and power systems. Available in green, with a standard coil length of 300 feet (100 yards), and other lengths on request.
Key Features
- Stranded copper conductor (7 wires, 2.24 mm diameter) for flexibility and conductivity
- PVC insulation rated at 90°C, resistant to heat, water, and UV
- Voltage rating: 450/750V
- Nominal insulation thickness: 1.2 mm; overall diameter: 8.3 mm
- Max DC resistance at 20°C: 0.727 ohm/km
- Weight: 257 kg/km
- Complies with BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3
