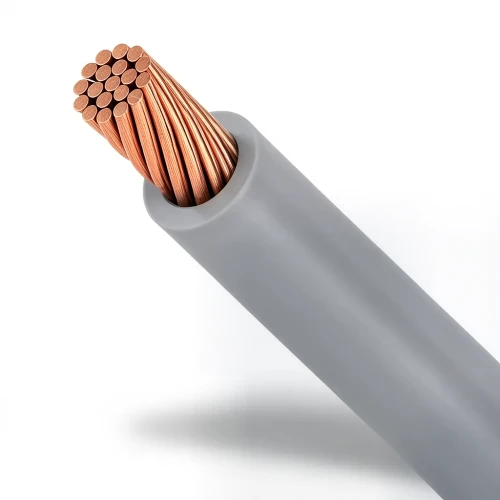

Stranded Copper Wire, 10 sq mm Size, 450/750V, PVC Insulation, Gray | Nohascom Factory
(39 Product Views)
Product description
This stranded copper electrical wire (CU/PVC) from Nohascom Factory International Company is engineered for reliable performance in demanding electrical installations. The high-purity stranded copper conductor ensures excellent conductivity, while the Polyvinyl Chloride (PVC) insulation provides robust protection against moisture, corrosion, and mechanical stress—ideal for Qatar's hot and humid climate.
The PVC insulation forms a superior barrier that prevents current leakage and shields the copper core from damage, enhancing safety for both people and equipment. It also extends the wire's service life and slows degradation, making it a cost-effective choice for long-term projects. Suitable for internal wiring in electric motors, transformers, lighting fixtures, and other electrical appliances.
Key features:
- Stranded copper conductor for flexibility and conductivity
- PVC insulation rated for 70°C
- Voltage rating: 450/750V
- Cross-sectional area: 10 mm²
- 7 wires, each 1.33 mm diameter
- Max DC resistance at 20°C: 1.83 ohm/km
- Nominal insulation thickness: 1 mm
- Approx. overall diameter: 6.2 mm
- Weight: 119 kg/km
- Available in standard lengths (custom lengths on request)
- Color: Gray
- Complies with IEC 60227
Perfect for electrical contractors and construction projects in Doha, Al Rayyan, and Al Wakrah, this wire meets international standards and supports safe, efficient installations.
