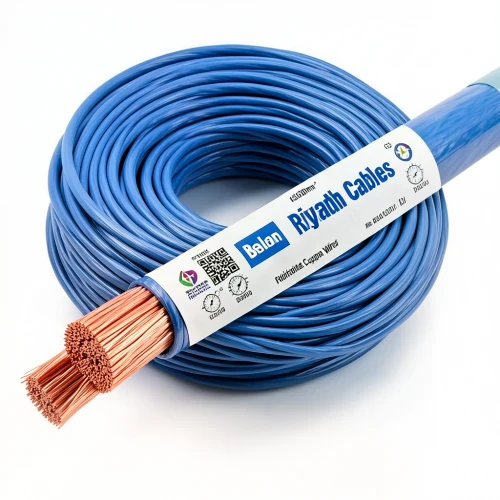

PVC Insulation Stranded Copper Single Electrical Wire, 630mm2 Cross Section, 450/750V, Blue Color | Riyadh Cables
(37 Product Views)
Product description
This premium PVC-insulated stranded copper conductor (CU/PVC) from Riyadh Cables is built to meet the rigorous demands of large-scale electrical projects in Qatar. With a massive 630 mm² cross-section, it delivers exceptional current-carrying capacity, making it ideal for main power distribution, industrial feeders, and high-load infrastructure across Doha, Al Rayyan, and Al Wakrah.
The conductor is stranded for superior flexibility, easing installation in confined spaces commonly found in dense urban developments. The robust PVC insulation provides reliable protection against electrical leakage, mechanical abrasion, corrosion, moisture, and UV radiation — ensuring long-term performance in Qatar's harsh climate. Compliant with SSA 1320, IEC 60227, and BS 6004, this wire meets the highest international safety and quality standards.
Key Features
- Conductor: High-conductivity copper, stranded (127/91 wires)
- Cross-section: 630 mm² — handles very large electrical loads
- Voltage rating: 450/750V
- Insulation: PVC, nominal thickness 2.8 mm
- Approx. overall diameter: 41.0 mm
- Weight: 6050 kg/km
- Max DC resistance at 20°C: 0.0283 ohm/km
- Length: 500m drum (±5%)
- Color: Blue
- Standards: SSA 1320, IEC 60227, BS 6004
Ideal for fixed internal installations, this wire is suitable for power circuits, lighting, building wiring, and internal equipment wiring. Available in various sizes and colors to suit diverse project needs across Qatar.
