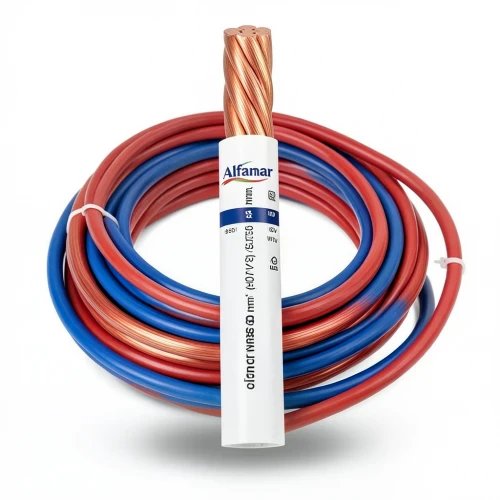

Copper Stranded Wire Size 95mm 450/750V, PVC Insulation | Alfanar

This Alfanar stranded copper wire (CU/PVC) is a dependable choice for electrical installations across Qatar, from residential projects in Al Rayyan to commercial developments in Doha and Al Wakrah. Manufactured to the latest British Standards (BS) and International Electrotechnical Commission (IEC) standards, it ensures consistent performance and long-term durability.

The PVC insulation provides a robust protective layer that prevents current leakage, safeguards against shocks, abrasion, and corrosion, and resists moisture and harmful UV rays—ideal for Qatar's demanding climate. With a 450/750V rating and a 95mm² cross-section, this wire is suitable for fixed internal installations, including power circuits, lighting systems, building wiring, and internal connections of appliances and equipment.

Key Features

• Stranded copper conductor for flexibility and reliable conductivity
• PVC insulation rated for 70°C continuous operation
• Voltage rating: 450/750V
• Conductor size: 95mm² (19 wires, each 2.66mm diameter)
• Maximum DC resistance at 20°C: 0.193 ohm/km
• Nominal insulation thickness: 1.6mm; overall diameter: 14.5mm
• Weight: 925 kg/km; color: black
• Complies with BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3 standards
