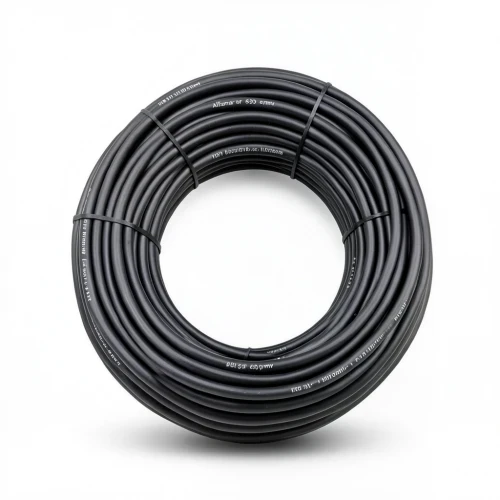

Alfanar 630 sq mm Single Electrical Wire 450/750V, Stranded Copper Conductor PVC Insulation 2.8mm Thickness
(40 Product Views)
Product description
This Alfanar 630 sq mm stranded copper wire is engineered for robust performance in Qatar's infrastructure and industrial projects. With a 450/750V rating and 2.8mm PVC insulation, it delivers reliable power transmission and safety in demanding environments, from Doha's commercial towers to Al Wakrah's industrial zones.
Manufactured to international standards (BS EN 50525-2-31, IEC 60227-3), this CU/PVC cable features a stranded copper conductor for flexibility and excellent conductivity. The PVC insulation provides superior protection against electrical leakage, mechanical abrasion, moisture, and UV radiation—essential for Qatar's harsh climate and high humidity.
Key Features
- Stranded copper conductor (61 wires, 3.81mm diameter) for enhanced flexibility
- 630 mm² cross-sectional area for high current-carrying capacity
- PVC insulation (70°C) with 2.8mm thickness for durable protection
- Max DC resistance at 20°C: 0.0283 ohm/km
- Approx. overall diameter: 35.7mm; weight: 6098 kg/km
- Gray phase core color for easy identification
- Available in 100-yard coils (custom lengths on request)
Ideal for fixed installations in control panels, machinery, lighting networks, and power systems across Qatar's residential, commercial, and industrial sectors. Compliant with SASO-GSO-IEC standards, ensuring quality and safety for local projects.
