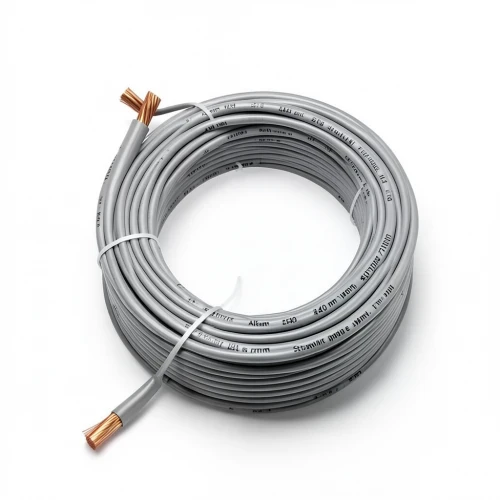

Alfanar 240 sq mm Single Wire 450/750V, Stranded Copper Conductor PVC Insulated 2.2mm Thick

This Alfanar stranded copper conductor wire, with a generous 240 mm² cross-section, is engineered for high-current fixed installations that demand dependable performance. The PVC insulation, rated for 70°C, provides excellent electrical isolation, safeguarding against current leakage, physical abrasion, and impact, while also offering robust resistance to moisture and harmful UV radiation—critical in Qatar's harsh climate.

Compliant with BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3 standards, this cable is a trusted choice for electricians, contractors, and facility managers across Doha, Al Rayyan, and Al Wakrah. Its stranded construction ensures flexibility during installation, and the 2.2 mm insulation thickness adds an extra layer of protection for long-term durability.

Ideal for internal fixed wiring in control panels, machinery, lighting circuits, and power distribution systems, this cable meets the rigorous demands of commercial, residential, and industrial projects throughout Qatar.

Key Specifications & Features

• Conductor: Stranded copper (37 wires, 3.12 mm diameter)
• Cross-Sectional Area: 240 mm²
• Voltage Rating: 450/750 V
• Insulation: PVC, 70°C, 2.2 mm nominal thickness
• Max DC Resistance at 20°C: 0.0754 ohm/km
• Approx. Overall Diameter: 22.5 mm
• Weight: 2333 kg/km
• Length: 100 yards per coil (other lengths on request)
• Color: Gray
• Standards: BS EN 50525-2-31, IEC 60227-3, SASO-GSO-IEC 60227-3
