Alfanar 10 mm Wire 450/750V, Stranded Copper Conductor PVC Insulated, 300ft Length
(34 Product Views)
Product description

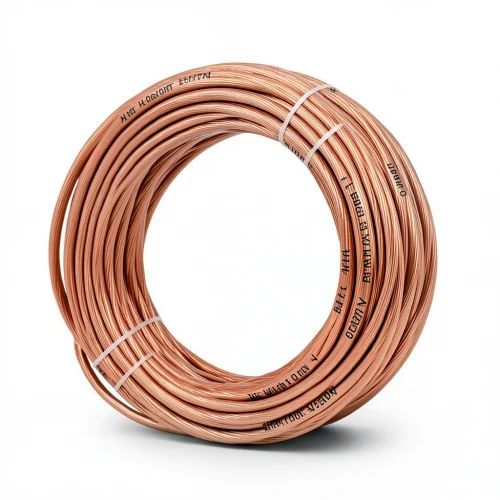

This Alfanar stranded copper wire is engineered for reliable electrical performance in Qatar's demanding environment. The 10 mm² cross-sectional area and 450/750V rating make it suitable for a wide range of fixed internal installations, from residential and commercial buildings in Doha to industrial facilities in Al Rayyan and Al Wakrah.
The PVC insulation provides excellent protection against electric leakage, shocks, and abrasion, while also resisting water, moisture, and harmful UV rays—crucial for withstanding Qatar's intense sunlight and occasional humidity. The stranded conductor offers flexibility, making installation easier in tight spaces and conduit runs.
Key Features
- Stranded copper conductor (7 wires) for flexibility and durability
- PVC insulation rated at 70°C
- Voltage rating: 450/750V
- Conductor size: 10 mm²
- Conductor diameter: 1.43 mm
- Max DC resistance at 20°C: 1.83 ohm/km
- Nominal insulation thickness: 1 mm
- Approx. overall diameter: 5.7 mm
- Weight: 109 kg/km
- Length: 300 feet per coil (other lengths on request)
- Color: Orange
- Complies with BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3 standards
Ideal for power circuits, lighting, building wiring, and internal connections of appliances and equipment. Available in various sizes to suit different project needs across Qatar.
