185 sq mm Stranded Copper Wire, Heat Resistant PVC Insulated, 450/750V, Coil Length 100 yards | Alfanar
(7 Product Views)

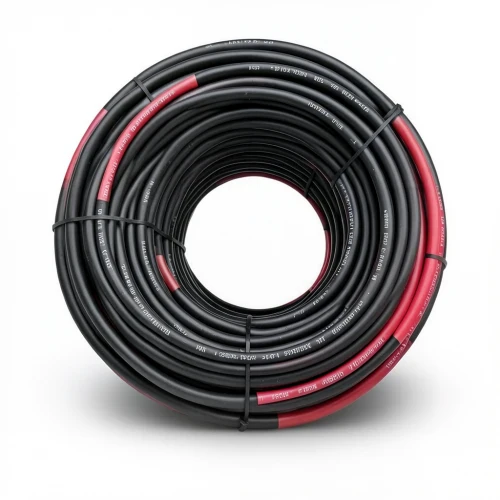

185 sq mm stranded copper wire with heat-resistant PVC insulation, rated 450/750V, ideal for high-temperature installations in Qatar. Supplied in 100-yard coils by Alfanar.
Product description
This 185 sq mm stranded copper wire from Alfanar is engineered for demanding electrical installations, combining high conductivity with robust heat-resistant PVC insulation. Manufactured to meet international standards, it ensures reliable performance and long service life, even in Qatar's extreme summer temperatures.
The insulation provides excellent protection against electrical leakage, shocks, abrasion, and moisture, making it a safe choice for both residential and commercial projects across Doha, Al Rayyan, and Al Wakrah. Its resistance to UV rays and water ensures durability in outdoor and high-humidity environments.
Key Features
- Conductor: Stranded copper, 185 mmยฒ cross-section
- Insulation: Heat-resistant PVC (90ยฐC)
- Voltage rating: 450/750V
- Conductor diameter: 2.70 mm; 37 wires
- Max DC resistance at 20ยฐC: 0.0991 ohm/km
- Insulation thickness: 2.0 mm; overall diameter: 19.8 mm
- Weight: 1773 kg/km
- Length: 100 yards per coil (other lengths on request)
- Color: Pink
- Standards: BS EN 50525-2-31, IEC 60227-3, SASO-GSO-IEC 60227-3
Ideal for fixed internal installations, control panels, machinery wiring, lighting networks, and power systems where higher operating temperatures are expected. Available in various sizes to suit different project requirements across Qatar.
