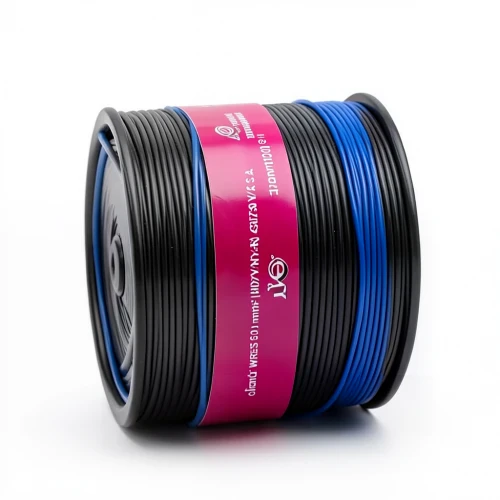

16mm Stranded Copper Wire, Heat Resistant PVC Insulated, 450/750V, Coil Length 300ft | Alfanar

This 16mm² stranded copper wire from Alfanar is engineered for reliability in demanding electrical environments. Manufactured to BS EN 50525-2-31, IEC 60227-3, and SASO-GSO-IEC 60227-3 standards, it combines robust performance with long-term durability.

The heat-resistant PVC insulation (rated 90°C) provides excellent protection against electric current leakage, shocks, abrasion, and corrosion. It also shields the cable from harmful UV rays and resists water and moisture, making it a dependable choice for Qatar's harsh climate and high-humidity coastal areas.

Ideal for fixed internal installations, this wire is perfect for wiring control boards, machines, instruments, lighting networks, and power systems that operate at elevated temperatures. Whether you're working on a commercial project in Doha, an industrial facility in Al Rayyan, or a residential development in Al Wakrah, this cable delivers consistent performance.

Key Features

• Conductor: Stranded copper (7 wires, 1.78 mm diameter)
• Cross-sectional area: 16 mm²
• Voltage rating: 450/750V
• Max DC resistance at 20°C: 1.15 ohm/km
• Nominal insulation thickness: 1.0 mm
• Approx. overall diameter: 6.7 mm
• Weight: 164 kg/km
• Length: 300 feet (100 yards) per coil; other lengths available on request
• Color: Pink
• Standards: BS EN 50525-2-31, IEC 60227-3, SASO-GSO-IEC 60227-3
