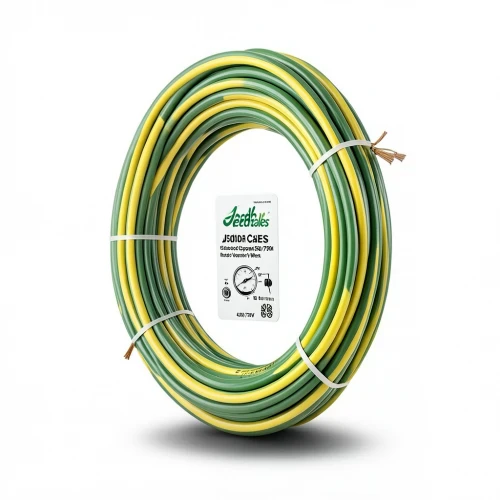

150mm2 Stranded Copper Earthing Electric Wire 450/750 Rated Voltage, Green/Yellow | Jeddah Cables
(35 Product Views)
150mm² stranded copper earthing wire with PVC insulation, rated 450/750V, in green/yellow. Built for reliable grounding in heavy industrial applications across Qatar.
Product description
This 150mm² stranded copper earthing wire from Jeddah Cables is engineered to provide a safe and dependable grounding path in demanding electrical installations. Its flexible copper conductor ensures easy handling and installation, while the PVC insulation offers robust protection against moisture, corrosion, and mechanical wear — critical in Qatar's harsh climate and dusty environments.
Designed for heavy industrial use, this grounding wire effectively channels fault currents to the ground, safeguarding personnel and equipment from electric shocks and fire hazards. It is ideal for earthing systems in commercial complexes, industrial plants, and infrastructure projects across Doha, Al Rayyan, and Al Wakrah.
Key Features
- Stranded flexible copper conductor for superior conductivity and flexibility
- PVC insulation rated at 85°C, resistant to water and moisture
- Rated voltage: 450/750V
- Conductor cross-section: 150 mm²
- Nominal insulation thickness: 1.8 mm
- Overall diameter: approx. 18.1 mm
- Weight: 1425 kg/km
- Max DC resistance at 20°C: 0.124 ohm/km
- Current rating: 316 A (in conduits), 473 A (free air)
- Green/Yellow color for easy identification
- Compliant with IEC 60227
