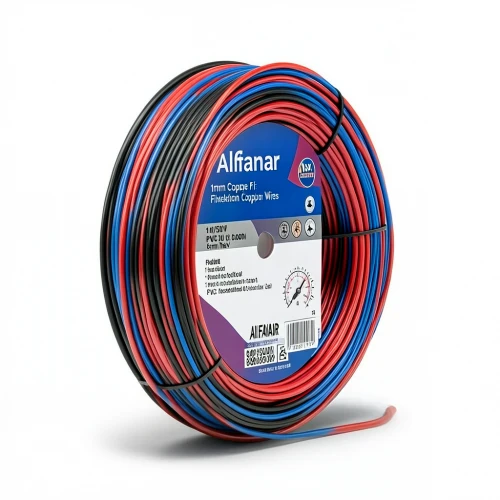

1mm Copper Flexible Wire 300/500V, PVC Insulation 0.6mm Thick | Alfanar

This Alfanar flexible copper wire (CU/PVC) is engineered for reliable performance in Qatar's demanding electrical environments. With a 1 mm² cross-section and a 300/500V rating, it delivers safe, efficient power transmission for a wide range of applications.

The PVC insulation, 0.6 mm thick, provides excellent resistance to moisture and corrosion, ensuring long-lasting durability even in humid coastal conditions common in Doha and Al Wakrah. Its flexible construction simplifies installation in tight spaces, making it a preferred choice for electricians and contractors across Qatar.

Key Features

• Conductor: Flexible copper (32 wires, 0.2 mm diameter)
• Insulation: PVC 70°C, 0.6 mm nominal thickness
• Voltage rating: 300/500V
• Max DC resistance at 20°C: 19.5 ohm/km
• Approx. overall diameter: 2.5 mm; weight: 16 kg/km
• Standard: BS EN 50525-2-31, IEC 60227-3, SASO-GSO-IEC 60227-3
• Length: 300 feet (100 yards) coil; other lengths available on request
• Color: Blue

Applications in Qatar

Ideal for internal wiring in electric motors, transformers, household appliances, and lighting systems. Suitable for measurement, regulation, and control devices in commercial and residential projects across Doha, Al Rayyan, and beyond.
