0.5mm Copper Flexible Wire 300/500V, PVC Insulation 0.6mm Thick | Alfanar
(31 Product Views)
Product description

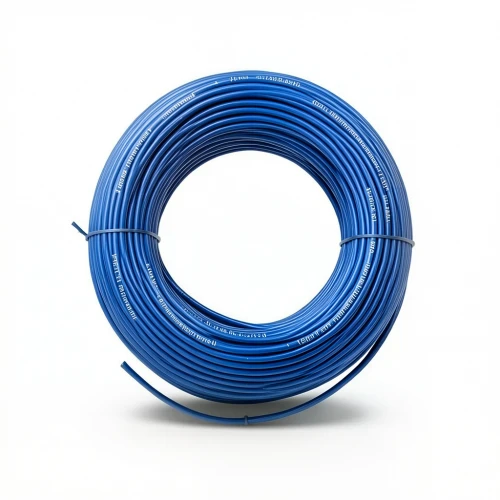

This flexible copper wire from Alfanar is engineered for reliable performance in demanding electrical applications. With a cross-sectional area of 0.5 mm² and a voltage rating of 300/500V, it meets the requirements of modern building and industrial projects in Qatar.
The PVC insulation provides excellent resistance to moisture and mechanical wear, ensuring long-lasting safety and durability—a key consideration in Qatar's hot and humid climate. The flexible conductor simplifies installation in tight spaces, making it a preferred choice for electricians and contractors across Doha, Al Rayyan, and Al Wakrah.
Key Features
- Conductor: Flexible copper (16 wires, 0.2 mm diameter)
- Insulation: PVC, 0.6 mm nominal thickness, rated 70°C
- Voltage: 300/500V
- Max DC resistance: 39 ohm/km at 20°C
- Overall diameter: 2.1 mm; weight: 10 kg/km
- Length: 300 feet per coil (other lengths on request)
- Color: Blue
- Standards: BS EN 50525-2-31, IEC 60227-3
Ideal for internal wiring in electric motors, transformers, control panels, and lighting systems, this wire supports a wide range of residential, commercial, and industrial applications throughout Qatar.
