HDPE Polyethylene Plastic Coil Pipe Working Pressure 6 Bar [PE 100] Outer Diameter 160 mm SDR 26 Color Black | Almona Company

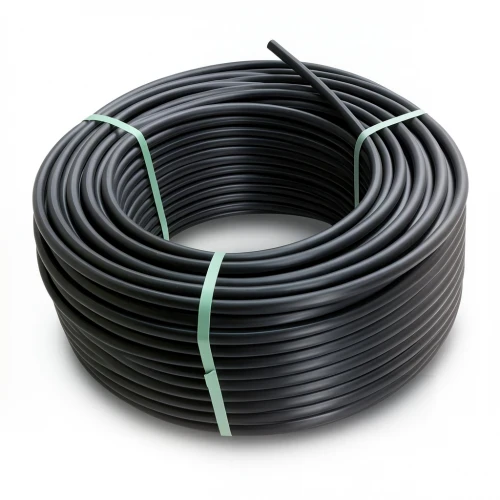

This HDPE coil pipe, manufactured by Al-Mona Company, is designed for reliable water transportation networks across Oman. Made from high-density polyethylene (PE100), it offers exceptional strength, durability, and resistance to corrosion and high temperatures, ensuring long-lasting performance in the Omani climate.

With a 160 mm outer diameter and SDR 26 rating, this pipe delivers a working pressure of 6 bar, suitable for various water supply and irrigation applications. Its lightweight nature simplifies handling and installation, reducing labor costs and time on site.

Key Features

• Material: High-density polyethylene (PE100)
• Outer diameter: 160 mm
• Wall thickness: 6.2 mm
• Standard dimension ratio: SDR 26
• Working pressure: 6 bar
• Pipe series (S): 12.5
• Color: Black
• Minimum required strength (MRS): 10 MPa
• Design stress (σs): 8 MPa
• Design safety factor: C=1.25
• Available in coils: 100, 200, 300 meters up to 1500 meters (for sizes 16 mm to 32 mm); 100-meter coils for sizes 40 mm to 160 mm
• Manufactured according to ISO 4427-2

Ideal for water supply networks, irrigation systems, and industrial applications in Muscat, Salalah, and Sohar, this HDPE pipe ensures efficient and dependable fluid conveyance.
