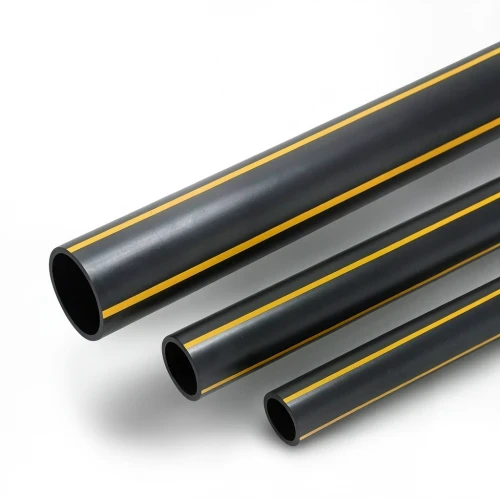

HDPE Polyethylene Pipe PN 4.8 Bar [PE 80] OD 355 mm Thickness 20.2 mm Color Black with Yellow Stripes | Almona Factory

This HDPE pipe, manufactured by Almona Factory in accordance with ISO 4437, is specifically designed for gas supply networks. Its high-density polyethylene construction delivers exceptional strength, durability, and resistance to corrosion, ensuring long-term performance even in demanding environments.

With a pressure rating of 4.8 bar and an SDR of 17.6, this pipe is well-suited for gas distribution projects across Oman, from Muscat to Salalah. Its lightweight nature simplifies handling and installation, reducing labor costs and project timelines.

Key Features

• Outer diameter: 355 mm
• Wall thickness: 20.2 mm
• Material grade: PE 80
• Standard dimension ratio: SDR 17.6
• Minimum required strength (MRS): 8 MPa
• Design stress: 4 MPa
• Design safety factor: C=2
• Weight: 21.29 kg/m
• Color: black with yellow stripes
• Standard length: 12 meters (custom lengths available on request)

Applications in Oman

Ideal for gas distribution networks in residential, commercial, and industrial projects. The pipe's resistance to corrosion and ability to withstand high temperatures make it a reliable choice for Oman's harsh climate and soil conditions.
