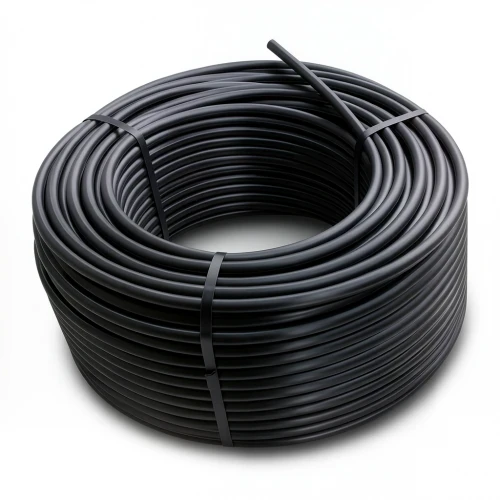

HDPE Polyethylene Coil Pipe Nominal Pressure 6 Bar [PE 100] OD 63 mm SDR 26 Color Black | Almona Factory
(33 Product Views)
Product description
This HDPE coil pipe from Al-Mona Factory is engineered for reliable water transportation in Oman's demanding environments. Made from high-density polyethylene (PE100), it offers excellent strength, durability, and resistance to corrosion, ensuring a long service life even in harsh conditions.
Designed for a nominal pressure of 6 bar (SDR 26), this pipe is suitable for a wide range of applications, including potable water supply, irrigation, and industrial water systems. Its flexibility and coil form allow for easy handling and installation, reducing the need for joints and fittings.
Key Features
- Outside diameter: 63 mm
- Wall thickness: 2.5 mm
- Standard Dimension Ratio (SDR): 26
- Nominal pressure: 6 bar
- Pipe Series (S): 12.5
- Material grade: PE100
- Color: Black
- Minimum Required Strength (MRS): 10 MPa
- Design stress (σs): 8 MPa
- Design safety factor: C=1.25
- Available in coils: 100 m, 200 m, 300 m up to 1500 m (for sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm
- Manufactured according to ISO 4427-2
Ideal for projects across Oman—from Muscat to Salalah and Sohar—this pipe meets the highest quality standards, ensuring dependable performance in water networks.
