![HDPE Plastic Coil Pipe PN 4.8 Bar [PE 80] OD 160 mm Thickness 9.1 mm Color Yellow | Almona Factory](https://d3usa7hclic8la.cloudfront.net/473007/conversions/hdpe-plastic-coil-pipe-pn-48-bar-pe-80-od-160-mm-thickness-91-mm-color-yellow-almona-factory-om-size_500_500.webp)

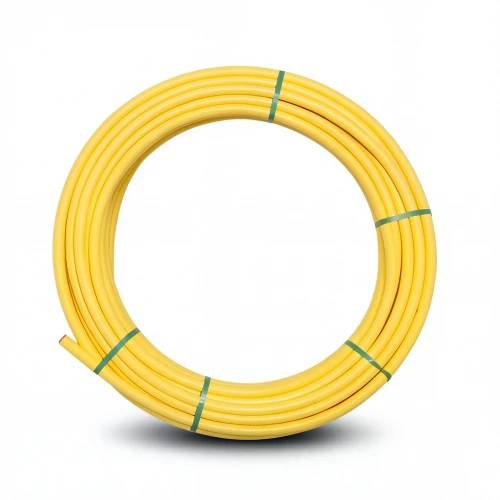

HDPE Plastic Coil Pipe PN 4.8 Bar [PE 80] OD 160 mm Thickness 9.1 mm Color Yellow | Almona Factory
(6 Product Views)
High-density polyethylene coil pipe from Al-Mona Factory, PE 80 grade, 4.8 bar pressure, 160 mm OD, 9.1 mm wall, yellow, ideal for gas networks in Oman.
in stock
Product description
This HDPE coil pipe, manufactured by Al-Mona Factory, is a dependable solution for gas supply networks across Oman. Engineered to meet ISO 4437 standards, it combines strength, durability, and resistance to corrosion, making it suitable for the challenging Omani environment, from the coastal humidity of Muscat to the heat of the interior.
Key specifications include an outside diameter of 160 mm, a wall thickness of 9.1 mm, and a pressure rating of 4.8 bar (SDR 17.6). The PE 80 material grade ensures a minimum required strength of 10 MPa, with a design stress of 5 MPa and a safety factor of C=2. Weighing 4.38 kg per meter, this pipe offers a balance of robustness and manageability.
Applications in Oman
- Gas distribution networks for residential and commercial areas
- Industrial gas supply lines in Sohar and Salalah
- Underground installations requiring resistance to ground pressure
Key Features
- High-density polyethylene (HDPE) construction for long-lasting performance
- Yellow color for easy identification in gas systems
- Available in coil lengths from 100 to 1500 meters (for sizes 16-32 mm) and 100-meter coils for sizes 40-160 mm
- Resistant to high temperatures, pressure, and corrosion
