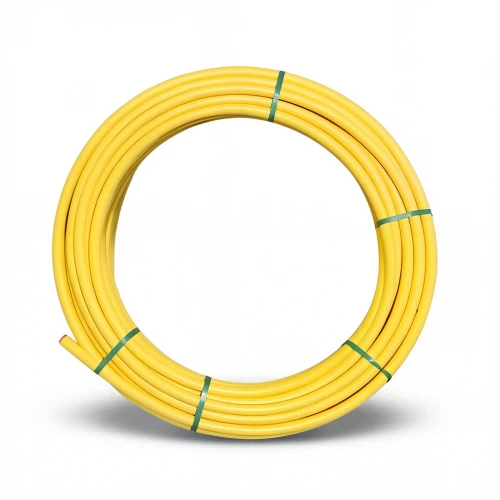

HDPE Coil Pipe Nominal Pressure 4.8 Bar [PE 80] OD 32 mm Thickness 2.3 mm Color Yellow | Almona Factory
(33 Product Views)
High-density polyethylene (HDPE) coil pipe, PE80 grade, with a nominal pressure of 4.8 bar and an outside diameter of 32 mm. Manufactured by Al-Mona Factory for reliable gas supply networks.
in stock
Product description
This HDPE coil pipe from Al-Mona Factory is engineered for gas supply networks, meeting the ISO 4437 standard. Its high-density polyethylene construction delivers exceptional strength, durability, and resistance to corrosion, making it a dependable choice for infrastructure projects across Oman—from Muscat to Salalah and Sohar.
The pipe is designed for easy and fast installation, requiring no advanced equipment, which reduces labor time and costs on site. It withstands high temperatures and pressure, ensuring long-term performance even in harsh desert climates.
Key Specifications
- Outside Diameter: 32 mm
- Standard Dimension Ratio: SDR 17.6
- Material Grade: PE 80
- Nominal Pressure: 4.8 bar
- Wall Thickness: 2.3 mm
- Weight: 0.22 kg/m
- Minimum Required Strength (MRS): 10 MPa
- Design Stress: 5 MPa
- Design Safety Factor: C=2
- Color: Yellow
- Available in coils from 100 m to 1500 m (sizes 16–32 mm); 100 m coils for sizes 40–160 mm
Ideal for gas distribution and industrial applications, this pipe combines quality, safety, and practicality for Omani projects.
