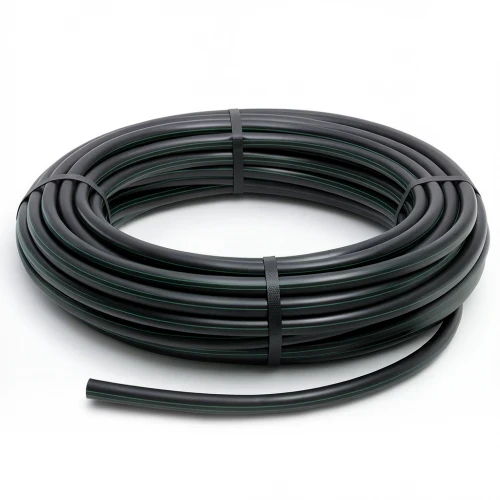

HDPE Polyethylene Plastic Coil Pipe Working Pressure 9.8 Bar [PE 63] Outer Diameter 140 mm SDR 9 Color Black | Almona Company

This HDPE (high-density polyethylene) coil pipe, manufactured by Al-Mona Company, offers a reliable and durable solution for water conveyance in Kuwait's demanding environment. Engineered with a PE 63 material grade and an SDR 9 standard dimensional ratio, it delivers a working pressure of 9.8 bar, making it suitable for high-pressure water networks and irrigation systems across Kuwait City, Hawalli, and Al Ahmadi.

The pipe's exceptional flexibility allows for easy installation, especially in long continuous coils that minimize joints and potential leak points. Its corrosion resistance and lightweight nature reduce handling and maintenance costs, while its 50-year maintenance-free service life ensures long-term value. The black color provides UV protection, crucial for outdoor installations under the intense Kuwaiti sun.

Key Features

• Outside diameter: 140 mm
• Wall thickness: 15.7 mm
• Weight: 6.11 kg/m
• Working pressure: 9.8 bar
• Pipe series (S): 4
• Material grade: PE 63 (MRS 6.3 MPa)
• Design stress (σs): 3.94 MPa
• Design safety factor: C=1.6
• Color: Black
• Manufactured according to DIN 8074/8075

Available in coil lengths from 100 to 1500 meters for sizes 16–32 mm, and 100-meter coils for sizes 40–160 mm. This pipe is an excellent choice for agricultural irrigation, municipal water supply, and industrial fluid transfer projects throughout Kuwait.
