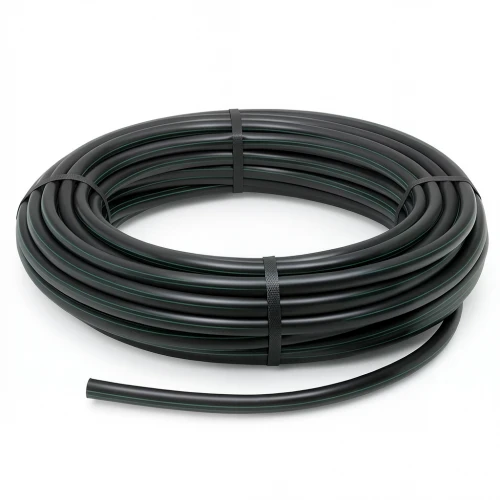

HDPE Polyethylene Plastic Coil Pipe Working Pressure 6.2 Bar [PE 63] Outer Diameter 40 mm SDR 13.6 Color Black | Almona Company

This HDPE coil pipe from Al-Mona Company is a reliable solution for irrigation and water transfer systems across Kuwait. Made from high-density polyethylene (PE 63), it offers exceptional durability and long-term performance, even under demanding conditions.

Designed to withstand ground pressures and high water pressure, this pipe ensures a maintenance-free service life of up to 50 years. Its resistance to external factors makes it suitable for both underground and aboveground installations, ideal for Kuwait's harsh climate and sandy soils.

Key Features

• Working pressure: 6.2 bar
• Outer diameter: 40 mm
• Wall thickness: 3.0 mm
• Weight: 0.356 kg/m
• Standard dimension ratio: SDR 13.6
• Pipe series (S): 6.3
• Material grade: PE 63
• Color: Black
• Minimum required strength (MRS): 6.3 MPa
• Design stress (σs): 3.94 MPa
• Design safety factor: C=1.6
• Available in coils: 100 m, 200 m, 300 m up to 1500 m (for sizes 16 mm to 32 mm); 100 m coils for sizes 40 mm to 160 mm
• Manufactured according to DIN 8074/8075

Whether for agricultural irrigation, landscaping, or municipal water supply, this HDPE pipe delivers consistent flow and reliable service. Its flexibility and coil form make transportation and installation easy, reducing joints and potential leak points.
