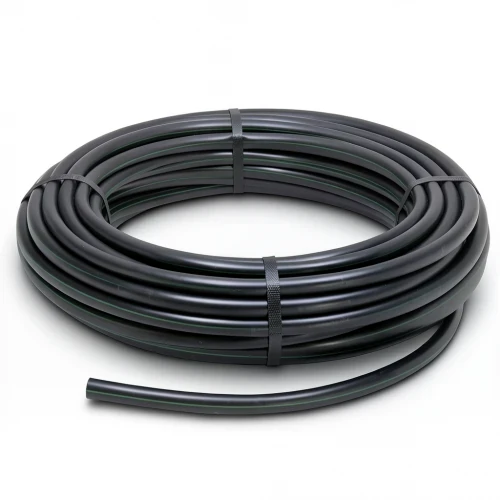

HDPE Polyethylene Plastic Coil Pipe Working Pressure 6 Bar [PE 63] Outer Diameter 63 mm SDR 17.6 Color Black | Almona Company

This HDPE coil pipe from Al-Mona Company is engineered for reliable and efficient irrigation systems across Kuwait. Made from high-density polyethylene (PE 63), it offers exceptional durability and long-lasting performance, even under the demanding conditions of the local climate.

The pipe is designed to withstand high water pressure, making it suitable for water networks that operate under significant stress. With a service life of up to 50 years without the need for maintenance, it provides a cost-effective and dependable solution for agricultural and landscaping projects.

Key Features

• Outside diameter: 63 mm
• Wall thickness: 3.6 mm
• Weight: 0.688 kg/m
• Standard dimension ratio (SDR): 17.6
• Working pressure: 6 bar
• Pipe series (S): 8.3
• Material grade: PE 63
• Color: Black
• Minimum required strength (MRS): 6.3 MPa
• Design stress (σs): 5.04 MPa
• Design safety factor: C=1.25
• Manufactured according to DIN 8074/8075

Applications in Kuwait

Ideal for irrigation networks in farms, greenhouses, and public parks across Kuwait City, Hawalli, and Al Ahmadi. The pipe's resistance to weather factors ensures reliable performance in the harsh desert environment, and its coil format simplifies transportation and installation over long distances.
