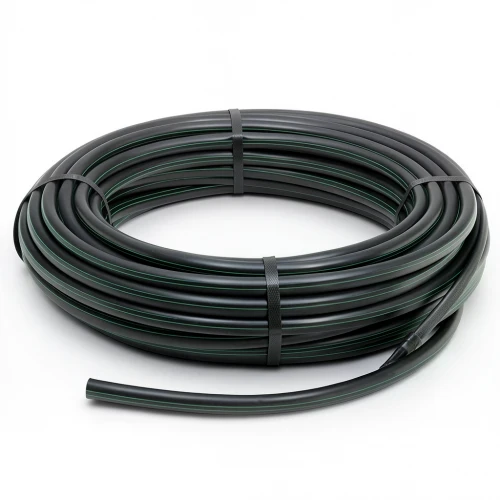

HDPE Polyethylene Plastic Coil Pipe Working Pressure 10 Bar [PE 80] Outer Diameter 125 mm SDR 13.6 Color Black | Almona Company

Al Mona Company presents its premium HDPE coil pipes, engineered for the rigorous demands of irrigation systems across Kuwait. Crafted from high-density polyethylene (PE 80), these pipes deliver exceptional durability and performance, ensuring reliable water conveyance in both agricultural and municipal applications.

With a working pressure of 10 bar and a standard dimensional ratio (SDR) of 13.6, these pipes are built to withstand high-pressure conditions, making them a dependable choice for water networks exposed to significant stress. Their robust construction offers superior resistance to external factors, while their smooth interior minimizes friction losses, enhancing flow efficiency.

Key Features and Benefits

• Outside diameter: 125 mm
• Wall thickness: 9.2 mm
• Material weight: 3.37 kg/m
• Pressure rating: 10 bar
• Pipe series (S): 6.3
• Material grade: PE 80
• Color: Black (UV-resistant for outdoor use)
• Minimum Required Strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Manufactured according to DIN 8074/8075
• Available in coil lengths: 100 m, 200 m, 300 m up to 1500 m (for sizes 16 mm to 32 mm)
• 100-meter coils for sizes 40 mm to 160 mm

These pipes are designed for a maintenance-free service life of up to 50 years, significantly reducing long-term operational costs. Whether you are upgrading irrigation infrastructure in Al Ahmadi or installing new water lines in Kuwait City, these HDPE coils offer a cost-effective and long-lasting solution.
