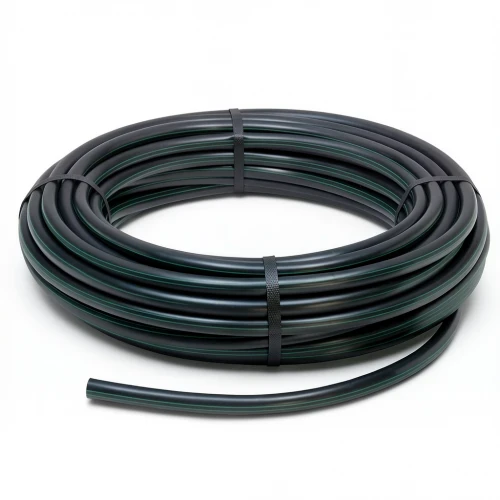

HDPE Polyethylene Coil Pipe Nominal Pressure 9.8 Bar [PE 63] OD 110 mm SDR 9 Color Black | Almona Factory

Al-Mona Factory presents its HDPE coil pipes, engineered for high-performance liquid conveyance in Kuwait's challenging climate. Made from high-density polyethylene (PE 63), these pipes offer exceptional resistance to pressure and external factors, ensuring a maintenance-free service life of up to 50 years. Ideal for irrigation networks, water supply lines, and industrial applications across Kuwait City, Hawalli, and Al Ahmadi, they deliver reliable performance under high water pressure.

With an outside diameter of 110 mm and a wall thickness of 12.3 mm, these pipes feature a standard dimensional ratio (SDR 9) and a nominal pressure rating of 9.8 bar. Manufactured to DIN 8074/8075 standards, they provide a design safety factor of C=1.6, guaranteeing robust operation. The lightweight construction simplifies handling and installation, reducing labor and logistics costs for projects of any scale.

Key Features

• High-density polyethylene (PE 63) material with minimum required strength (MRS) of 6.3 MPa
• Nominal pressure: 9.8 bar, pipe series (S) 4, design stress 3.94 MPa
• Outside diameter: 110 mm, wall thickness: 12.3 mm, weight: 3.78 kg/m
• Standard dimensional ratio SDR 9, black color for UV protection
• Available in coils of 100 meters (for sizes 40 mm to 160 mm) and longer coils up to 1500 meters (for sizes 16 mm to 32 mm)
• Complies with DIN 8074/8075, ensuring high quality and durability
