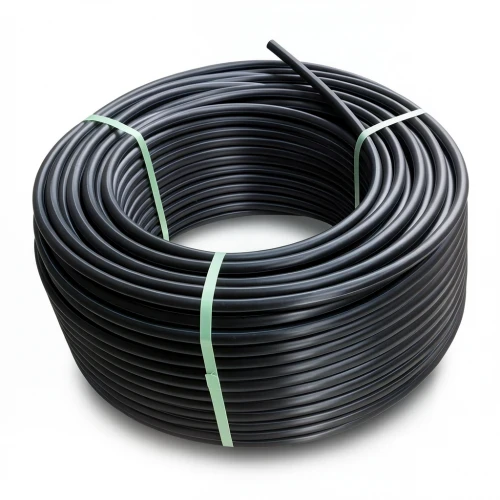

HDPE Polyethylene Coil Pipe Nominal Pressure 3.2 Bar [PE 100] OD 90 mm SDR 41 Color Black | Almona Factory

Our HDPE coil pipes from Al Mona Factory are engineered for reliable water transportation in Kuwait's demanding environment. Made from high-density polyethylene (PE 100), these pipes deliver exceptional durability and performance, handling high water pressures with ease—a crucial feature for the pressurized networks common in Kuwaiti urban and industrial projects.

With a nominal pressure of 3.2 bar and an outside diameter of 90 mm (SDR 41), this pipe is designed for long-term service. Its 50-year maintenance-free lifespan reduces operational costs and ensures uninterrupted water supply, whether for residential complexes in Hawalli, commercial developments in Kuwait City, or infrastructure in Al Ahmadi. The black color provides UV resistance, protecting the pipe when exposed to sunlight during storage or above-ground installation.

Key Specifications

• Outside diameter: 90 mm
• Wall thickness: 2.2 mm
• Weight: 0.647 kg/m
• Standard dimensional ratio (SDR): 41
• Nominal pressure: 3.2 bar
• Pipe series (S): 20
• Material grade: PE 100
• Minimum required strength (MRS): 10.0 MPa
• Design stress (σs): 6.25 MPa
• Design safety factor: C=1.6
• Standard: DIN 8074/8075

Available Lengths

Supplied in coils of 100, 200, 300 meters, and up to 1500 meters for sizes 16 mm to 32 mm. For sizes 40 mm to 160 mm, coils are 100 meters long.
