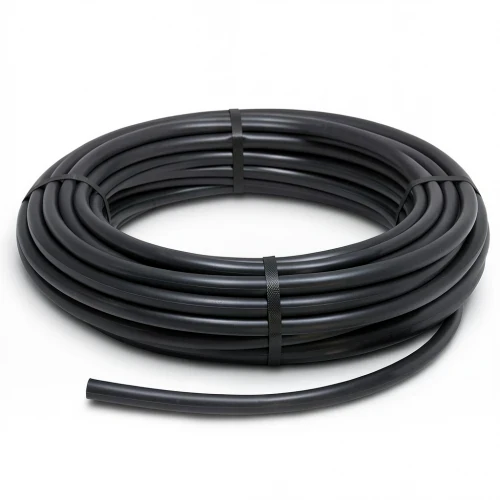

HDPE Polyethylene Coil Pipe Nominal Pressure 10 Bar [PE 80] OD 63 mm SDR 13.6 Color Black | Almona Factory

Our HDPE coil pipes, manufactured by Al Mona Factory, are engineered for reliable performance in Kuwait's demanding climate. Made from high-density polyethylene (PE 80), these pipes offer exceptional durability and long-term service, making them a smart choice for irrigation systems, water supply lines, and industrial applications across the country.

With a nominal pressure of 10 bar and an outside diameter of 63 mm, this pipe is built to handle high water pressure, ensuring efficient and safe fluid transport. Its resistance to chemical corrosion (pH range 2-12) makes it suitable for a wide variety of fluids, while its lightweight nature simplifies handling and installation—especially beneficial for projects in Kuwait City, Hawalli, and Al Ahmadi.

Key Features

• Material: High-density polyethylene (PE 80)
• Outside diameter: 63 mm
• Wall thickness: 4.7 mm
• Standard dimension ratio (SDR): 13.6
• Nominal pressure: 10 bar
• Pipe series (S): 6.3
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Color: Black
• Manufactured according to DIN 8074/8075
• Available in coil lengths: 100, 200, 300 meters up to 1500 meters (sizes 16-32 mm); 100-meter coils for sizes 40-160 mm
• 50-year maintenance-free service life

Whether for agricultural irrigation in the desert or municipal water distribution, this HDPE coil pipe delivers the strength and flexibility required for long-lasting performance in Kuwait's unique environment.
