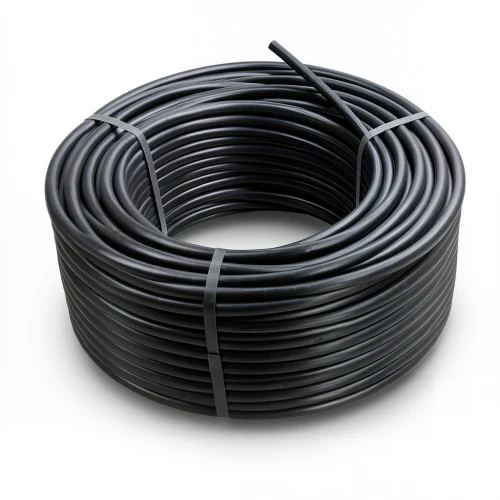

HDPE Plastic Coil Pipe PN 9.9 Bar [PE 100] OD 63 mm SDR 13.6 Color Black | Almona Factory
(26 Product Views)
High-quality HDPE coil pipes from Almona Factory, PE 100 grade, 9.9 bar pressure, and 63 mm OD, ideal for Kuwait's water networks.
in stock
Product description
These HDPE coil pipes, manufactured by Almona Factory, are engineered for reliable water transportation in Kuwait's demanding environment. Made from high-density polyethylene (PE 100), they offer exceptional durability and long-lasting performance, ensuring efficient fluid flow in municipal and industrial applications.
Designed to withstand high pressures and external stresses, these pipes are ideal for water supply networks across Kuwait, including Kuwait City, Hawalli, and Al Ahmadi. Their flexibility and resistance to earthquakes and UV exposure make them a dependable choice for both above-ground and buried installations.
Key Features
- Outside diameter: 63 mm
- Pressure rating: 9.9 bar
- Standard dimension ratio: SDR 13.6
- Material grade: PE 100
- Wall thickness: 4.7 mm
- Minimum required strength (MRS): 10 MPa
- Weight: 0.883 kg/m
- Design safety factor: C=1.6 (σs = 6.25 MPa)
- Color: Black
- Length: Available in coils of 100, 200, 300 meters (up to 1500 m for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm
- Complies with DIN 8074/8075
