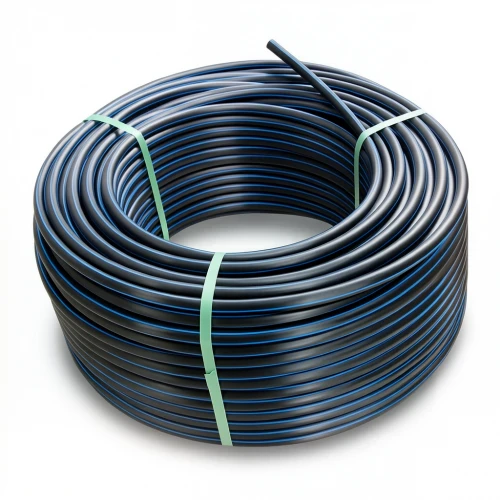

HDPE Plastic Coil Pipe PN 6.3 Bar [PE 100] Outside Diameter 140 mm SDR 26 Color Black with Blue Stripes | Almona Company

This HDPE coil pipe from Al-Mona Company is engineered for reliable water transportation in Kuwait's demanding environment. Made from high-density polyethylene (PE100), it combines exceptional strength with flexibility, making it easy to install in tight spaces and around obstacles—a key advantage for projects in dense urban areas like Kuwait City and Hawalli.

Designed to withstand high operating pressures up to 6.3 bar, this pipe ensures a long service life of over 50 years with minimal maintenance, even under Kuwait's harsh sun and temperature fluctuations. Its black color with blue stripes provides UV resistance and easy identification, while the smooth inner surface reduces friction and energy costs.

Key Features

• Outside diameter: 140 mm
• Wall thickness: 5.4 mm
• Standard dimension ratio: SDR 26
• Pressure rating: 6.3 bar
• Material: PE100 (MRS 10 MPa)
• Design stress: 8 MPa, safety factor C=1.25
• Weight: 2.35 kg/m
• Available in coils of 100 meters (sizes 40–160 mm) or up to 1500 meters (sizes 16–32 mm)
• Manufactured to DIN 8074/8075

Ideal for potable water supply, irrigation, and industrial applications across Kuwait, this pipe meets the rigorous standards expected by contractors and municipalities in Al Ahmadi and beyond.
