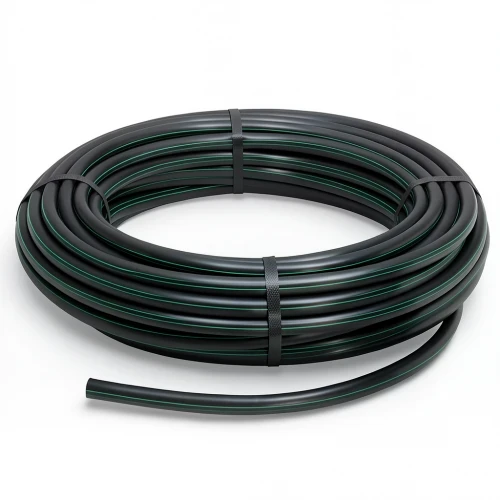

HDPE Plastic Coil Pipe PN 6.2 Bar [PE 63] Outside Diameter 32 mm SDR 13.6 Color Black | Almona Company
(1 Product Views)
Product description
Engineered for the demanding climate of Kuwait, this Almona HDPE coil pipe delivers reliable performance for irrigation networks and water distribution systems. Crafted from high-density polyethylene (PE 63), it offers exceptional resistance to the harsh sun and soil conditions found in areas like Hawalli and Al Ahmadi.
Key Technical Specifications
- Outside Diameter: 32 mm
- Wall Thickness: 2.4 mm
- Pressure Rating: 6.2 bar (PN 6.2)
- Standard Dimensional Ratio (SDR): 13.6
- Material Grade: PE 63
- Color: Black
- Weight: 0.232 kg/m
- Compliance: DIN 8074/8075
With a design safety factor of C=1.6 and a minimum required strength (MRS) of 6.3 MPa, this pipe ensures long-term structural integrity. The black coloration provides superior UV protection, extending the service life of your infrastructure. Available in coil lengths ranging from 100 to 1500 meters, it offers flexibility for both small-scale agricultural projects and larger municipal water lines in Kuwait City.
