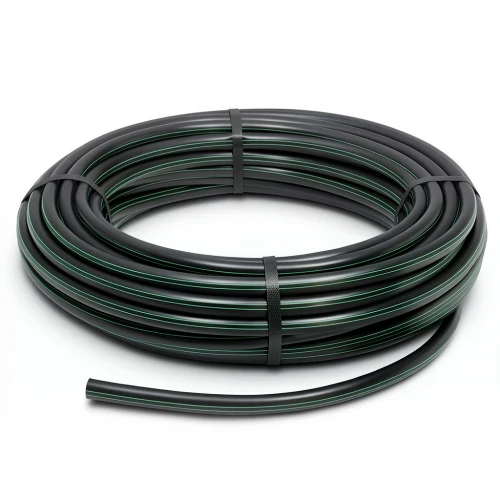

HDPE Plastic Coil Pipe PN 6.2 Bar [PE 63] OD 50 mm SDR 13.6 Color Black with Green Stripes | Almona Factory

This HDPE (high-density polyethylene) coil pipe, manufactured by Al Mona Factory in accordance with DIN 8074/8075, is an ideal solution for water transportation networks across Kuwait. Its robust design ensures reliable performance under the demanding conditions of the local climate and infrastructure.

The pipe is engineered to withstand high water pressures, making it suitable for networks that experience significant stress. With a lifespan of up to 50 years and no maintenance requirements, it offers a cost-effective and dependable choice for long-term projects. Its flexibility and resistance to external factors, including UV exposure and earthquakes, further enhance its durability.

In addition, the pipe provides excellent chemical corrosion resistance, handling a wide pH range from 2 to 12. This makes it versatile for various applications, from potable water lines to industrial uses.

Key Specifications

• Outside diameter: 50 mm
• Standard dimension ratio: SDR 13.6
• Pipe series (S): 6.3
• Material grade: PE 63
• Pressure rating: 6.2 bar
• Wall thickness: 3.7 mm
• Minimum required strength (MRS): 6.3 MPa
• Material weight: 0.549 kg/m
• Design safety factor: C=1.6, σs = 3.94 MPa
• Color: Black with green stripes
• Available in coils of 100 meters (for sizes 40 mm to 160 mm) and longer lengths up to 1500 meters (for sizes 16 mm to 32 mm)

This pipe is well-suited for water supply and irrigation projects in Kuwait City, Hawalli, and Al Ahmadi, offering reliable performance and easy installation.
