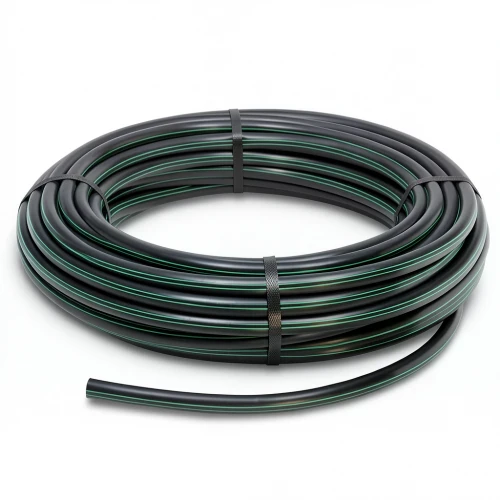

HDPE Plastic Coil Pipe PN 6.2 Bar [PE 63] OD 140 mm SDR 13.6 Color Black with Green Stripes | Almona Factory

This HDPE (high-density polyethylene) coil pipe, manufactured by Al Mona Factory in accordance with DIN 8074/8075, is engineered for reliable water transportation in Kuwait's demanding environment. Its robust construction ensures long-lasting performance in both potable water networks and agricultural irrigation systems.

Designed to withstand high water pressure, this pipe is ideal for networks that experience significant stress. With a minimum required strength (MRS) of 6.3 MPa and a design safety factor of C=1.6, it offers exceptional durability, backed by a maintenance-free service life of up to 50 years.

In Kuwait's harsh climate, this pipe excels: it resists UV degradation, making it suitable for prolonged outdoor exposure, and its flexibility provides excellent resistance to seismic activity—a key consideration for infrastructure in the region. Additionally, it is chemically resistant to a wide range of substances (pH 2–12), ensuring safe conveyance of water and other fluids.

Key Features

• Outer diameter: 140 mm
• Standard dimension ratio (SDR): 13.6
• Pipe series (S): 6.3
• Material grade: PE 63
• Pressure rating: 6.2 bar
• Wall thickness: 10.3 mm
• Weight: 4.22 kg/m
• Color: Black with green stripes
• Available in coils: 100 m, 200 m, 300 m, up to 1500 m (for sizes 16 mm–32 mm); 100 m coils for sizes 40 mm–160 mm

Whether for municipal water supply, private irrigation projects, or drainage systems, this HDPE coil pipe delivers the strength and flexibility required for Kuwait's infrastructure needs.
