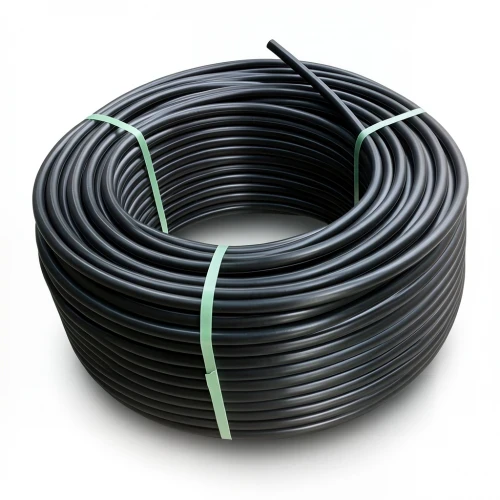

HDPE Plastic Coil Pipe PN 6 Bar [PE 100] Outside Diameter 140 mm SDR 26 Color Black | Almona Company

Al-Mona Company presents HDPE pipe coils engineered for reliable water transportation in Kuwait's demanding environment. Manufactured from premium high-density polyethylene (PE100), these pipes offer exceptional strength, durability, and resistance to corrosion, ensuring long service life even under high temperatures and pressure.

Designed for municipal, commercial, and industrial water supply projects across Kuwait City, Hawalli, and Al Ahmadi, these coils are ideal for underground and above-ground installations. Their lightweight nature simplifies handling and installation, while the smooth inner surface minimizes friction losses, contributing to efficient flow.

Key specifications include an outer diameter of 140 mm, wall thickness of 5.4 mm, standard dimensional ratio (SDR) of 26, and a pressure rating of 6 bar. The pipe series (S) is 12.5, with a minimum required strength (MRS) of 10 MPa and design stress (σs) of 8 MPa, incorporating a safety factor of C=1.25. Manufactured in accordance with ISO 4427-2, these coils come in lengths of 100 meters, suitable for projects requiring continuous runs.

• Material: High-density polyethylene (PE100)
• Pressure rating: PN 6 bar
• Outer diameter: 140 mm
• Wall thickness: 5.4 mm
• SDR 26 | Pipe Series (S) 12.5
• Color: Black
• Length: 100-meter coils
• Compliant with ISO 4427-2
