HDPE Plastic Coil Pipe PN 5 Bar [PE 80] OD 125 mm SDR 26 Color Black | Almona Factory

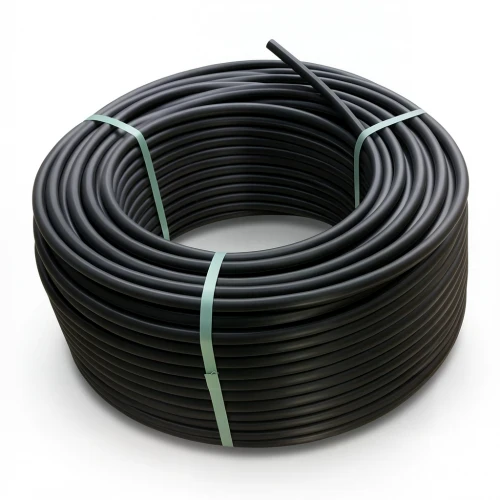

Al-Mona Factory presents HDPE pipe coils engineered for demanding water transportation networks in Kuwait. Manufactured to ISO 4427-2 standards from high-density polyethylene (PE 80), these pipes deliver exceptional strength, durability, and resistance to corrosion, making them ideal for the region's challenging environmental conditions.

With a pressure rating of PN 5 bar, an outer diameter of 125 mm, and an SDR 26 classification, these coils meet the rigorous requirements of municipal water supply, irrigation, and industrial applications. The material's high-temperature tolerance and pressure resistance ensure long-term performance, even under Kuwait's extreme climate.

Key Features

• Material: High-density polyethylene (PE 80) per ISO 4427-2
• Pressure rating: 5 bar (PN 5)
• Outer diameter: 125 mm
• Standard dimension ratio: SDR 26
• Wall thickness: 4.8 mm
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Color: Black
• Available in coil lengths of 100 meters (for sizes 40 mm to 160 mm)

These HDPE coils are perfect for water distribution networks, irrigation systems, and industrial fluid handling across Kuwait City, Hawalli, and Al Ahmadi. Their flexibility and ease of installation reduce labor costs and time, while their corrosion resistance ensures minimal maintenance. Choose Al-Mona HDPE pipe coils for a dependable, long-lasting piping solution.
