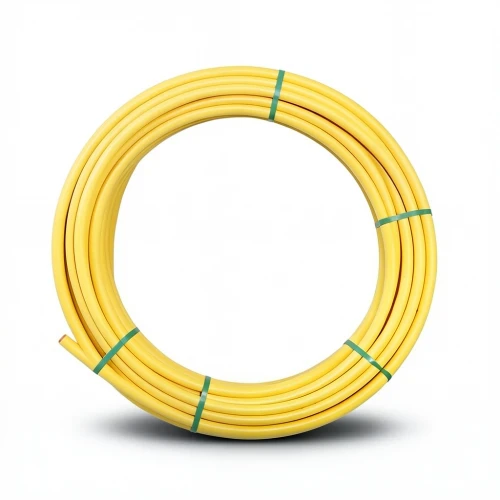

HDPE Plastic Coil Pipe PN 4.8 Bar [PE 80] Outside Diameter 140 mm Thickness 8 mm Color Yellow | Almona Factory

This HDPE coil pipe, manufactured by Al-Mona Factory in accordance with ISO 4437, is engineered for reliable gas supply networks. Its high-density polyethylene construction delivers exceptional strength, durability, and resistance to corrosion, while also withstanding high temperatures and pressure – a critical advantage in Kuwait's demanding climate.

With a PE80 grade and a pressure rating of 4.8 bar (SDR 17.6), this pipe offers a lightweight yet robust solution compared to traditional materials, making installation and transport easier and more economical. The yellow color ensures high visibility for safety, and the coil format allows for long, continuous runs, reducing the need for joints.

Key Specifications

• Outside Diameter: 140 mm
• Thickness: 8 mm
• Standard Dimension Ratio: SDR 17.6
• Material Grade: PE 80
• Pressure Rating: 4.8 bar
• Minimum Required Strength (MRS): 10 MPa
• Design Stress (σs): 5 MPa
• Design Safety Factor: C=2
• Color: Yellow
• Weight: 3.36 kg/m
• Length: Coils from 100 to 1500 meters (for sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

Ideal for gas distribution projects across Kuwait, including residential developments in Kuwait City, Hawalli, and Al Ahmadi, this pipe meets the high standards required for safe and efficient infrastructure.
