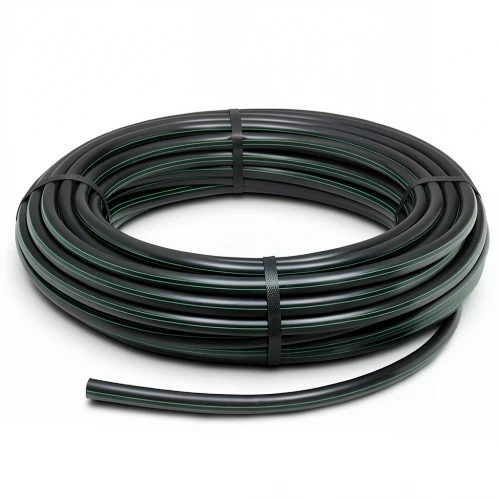

HDPE Plastic Coil Pipe PN 4 Bar [PE 80] Outside Diameter 90 mm Thickness 2.2 mm Color Black | Almona Factory
(1 Product Views)
High-density polyethylene (PE 80) coil pipe rated at 4 bar, 90 mm outside diameter, ideal for irrigation and water networks in Kuwait. Manufactured by Almona Factory to DIN 8074/8075 standards.
in stock
Product description
This HDPE coil pipe from Almona Factory is engineered for reliable performance in Kuwait's demanding water and irrigation systems. Made from high-density polyethylene (PE 80), it offers exceptional durability and a maintenance-free service life of up to 50 years, making it a cost-effective choice for long-term projects.
Key Features
- Pressure rating: 4 bar (SDR 41, Series S 20)
- Outside diameter: 90 mm, wall thickness: 2.2 mm
- Material weight: 0.643 kg/m
- Minimum required strength (MRS): 8 MPa, design stress: 6.4 MPa (safety factor C=1.25)
- Manufactured to DIN 8074/8075 standards
- Black color for UV resistance
- Available in coils: 100m, 200m, 300m up to 1500m (for sizes 16-32mm); 100m coils for sizes 40-160mm
Applications in Kuwait
Ideal for agricultural irrigation networks in Al Ahmadi, landscaping projects in Kuwait City, and water supply lines in Hawalli. Its flexibility and coil form facilitate easy installation across long distances, while its corrosion resistance suits Kuwait's soil and climate conditions.
