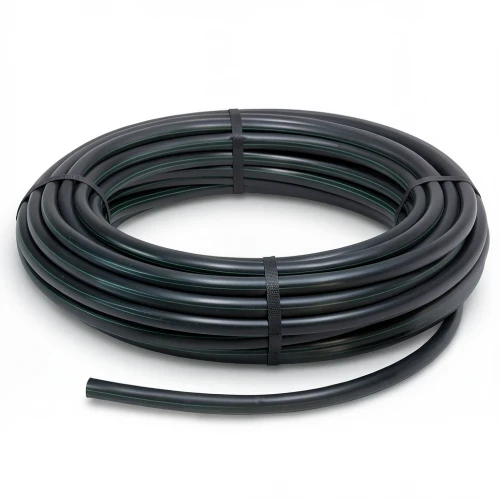

HDPE Plastic Coil Pipe PN 4 Bar [PE 80] Outer Diameter 140 mm SDR 33 Color Black | Almona Factory

This HDPE coil pipe from Almona Factory is engineered for demanding irrigation and water conveyance applications across Kuwait. Manufactured from high-density polyethylene (PE 80), it delivers exceptional durability, flexibility, and long-term performance—ideal for the region's harsh climate and sandy soil conditions.

Key Features

• Outer diameter: 140 mm
• Wall thickness: 4.3 mm
• Standard dimension ratio (SDR): 33
• Pressure rating: 4 bar
• Pipe series (S): 16
• Material grade: PE 80 (MRS 8 MPa, design stress 6.4 MPa, safety factor C=1.25)
• Color: black
• Manufactured to DIN 8074/8075
• Available in coils of 100 m, 200 m, 300 m, up to 1500 m (for sizes 16–32 mm); 100 m coils for sizes 40–160 mm

Applications in Kuwait

Ideal for agricultural irrigation networks in Al Ahmadi and Wafra farms, as well as municipal water supply lines in Kuwait City and Hawalli. The pipe's flexibility and resistance to seismic activity make it a reliable choice for buried infrastructure, while its 50-year maintenance-free lifespan ensures cost-effective operation.
