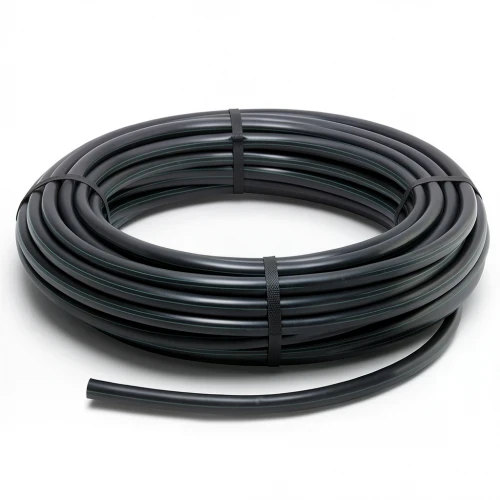

HDPE Plastic Coil Pipe PN 4 Bar [PE 63] Outside Diameter 63 mm SDR 26 Color Black | Almona Factory
(33 Product Views)
High-density polyethylene (HDPE) coil pipe, PN 4 bar, PE 63 grade, 63 mm outside diameter, SDR 26, in black, from Al Mona Factory – ideal for Kuwait's irrigation and water supply systems.
in stock
Product description
This HDPE coil pipe from Al Mona Factory is a dependable choice for irrigation and water distribution networks across Kuwait. Manufactured from high-density polyethylene (PE 63 grade) and conforming to DIN 8074/8075 standards, it delivers long-lasting performance even under demanding conditions.
Thanks to its lightweight design and flexibility, the pipe is easy to transport and install, reducing labor time on site. Its resistance to corrosion and rust ensures a maintenance-free service life of up to 50 years, making it a cost-effective solution for agricultural projects, landscaping, and municipal water lines in Kuwait City, Hawalli, and Al Ahmadi.
Key Features
- Outside diameter: 63 mm
- Wall thickness: 2.5 mm
- Pressure rating: 4 bar (PN 4)
- Standard dimensional ratio: SDR 26
- Pipe series (S): 12.5
- Material grade: PE 63
- Minimum required strength (MRS): 6.3 MPa
- Design stress (σs): 5.04 MPa
- Design safety factor: C=1.25
- Color: Black
- Available in coils of 100, 200, 300 meters, and up to 1500 meters for sizes 16–32 mm; 100-meter coils for sizes 40–160 mm
- Manufactured according to DIN 8074/8075
