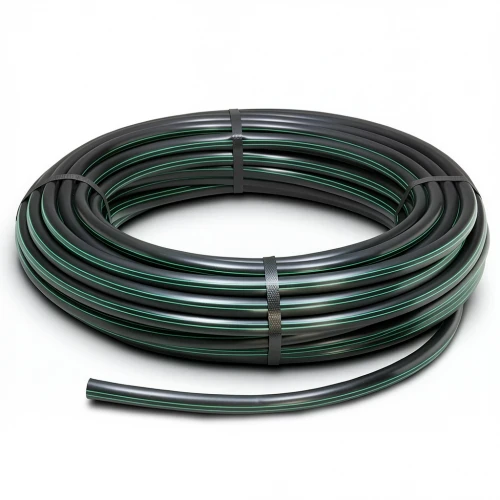

HDPE Plastic Coil Pipe PN 4 Bar [PE 63] OD 160 mm SDR 26 Color Black with Green Stripes | Almona Factory

These HDPE coil pipes from Al Mona Factory are manufactured to DIN 8074/8075 standards, offering a robust solution for water distribution networks across Kuwait. Crafted from high-density polyethylene (PE 63), they deliver exceptional durability and performance, making them ideal for the demanding conditions of the region.

With a pressure rating of 4 bar and an outside diameter of 160 mm, these pipes are engineered to handle high-pressure water systems with ease. Their flexibility and resistance to seismic activity ensure reliable operation, while their UV resistance protects against prolonged sun exposure common in Kuwait's climate.

Key Features

• Pressure rating: 4 bar
• Outside diameter: 160 mm
• Standard dimension ratio (SDR): 26
• Pipe series (S): 12.5
• Material grade: PE 63
• Wall thickness: 6.2 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 3.04 kg/m
• Design safety factor: C=1.25 (σs = 5.04 MPa)
• Color: Black with green stripes
• Length: Available in coils of 100, 200, 300 meters (up to 1500 meters for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm
• Chemical resistance: pH range 2 to 12
• Lifespan: 50 years maintenance-free

These pipes are suitable for various applications in Kuwait, including potable water supply, irrigation systems, and industrial fluid transport. Their easy installation and long-term reliability make them a preferred choice for contractors and municipalities in cities like Kuwait City, Hawalli, and Al Ahmadi.
