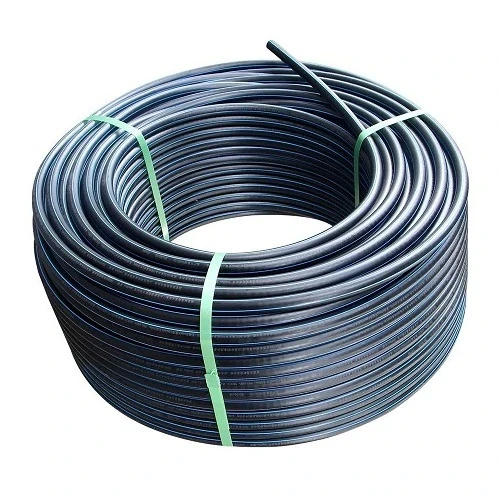

HDPE Plastic Coil Pipe PN 4 Bar [PE 100] Outside Diameter 125 mm SDR 33 Color Black with Blue Stripes | Almona Factory

These HDPE coil pipes, manufactured by Almona Factory in accordance with DIN 8074/8075, deliver reliable performance for water transportation networks throughout Kuwait. Made from high-density polyethylene (PE 100), they combine strength and flexibility to meet the demands of both urban and industrial projects.

Key Features

• Outside diameter: 125 mm
• Standard dimension ratio: SDR 33
• Pipe series (S): 16
• Material grade: PE 100
• Pressure rating: 4 bar
• Wall thickness: 3.9 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 1.53 kg/m
• Design safety factor: C=1.6, σs = 6.25 MPa
• Color: Black with blue stripes
• Length: Available in coils of 100, 200, 300 meters (up to 1500 meters for sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

Built for Kuwait's Environment

With a 50-year maintenance-free lifespan, these pipes offer exceptional resistance to UV radiation, chemical corrosion (pH 2–12), and even seismic activity, thanks to the flexibility of the pipe and welded joints. This makes them a dependable choice for water networks in Kuwait's harsh climate and varying soil conditions.

Applications

• Water supply networks for residential and commercial developments
• Industrial liquid transportation
• Infrastructure projects across Kuwait City, Hawalli, and Al Ahmadi
