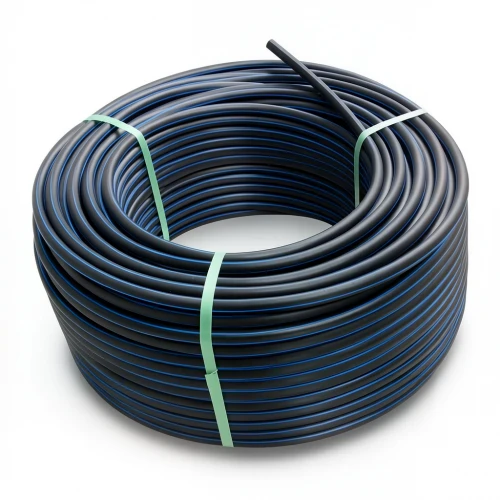

HDPE Plastic Coil Pipe PN 4 Bar [PE 100] OD 90 mm SDR 33 Color Black with Blue Stripes | Almona Factory

These HDPE coil pipes, manufactured by Al Mona Factory in accordance with DIN 8074/8075, offer a robust solution for water transportation in Kuwait's demanding environment. Made from high-density polyethylene (PE 100), they deliver outstanding durability and performance for both potable water supply and agricultural irrigation systems.

Designed to withstand high operating pressures, these pipes are suitable for networks under significant stress, with a maintenance-free lifespan of up to 50 years. Their flexibility provides excellent resistance to seismic activity, a key consideration in Kuwait's infrastructure planning, while also offering superior protection against UV exposure and chemical corrosion (pH range 2-12).

Key Features

• Outer diameter: 90 mm
• Standard dimension ratio: SDR 33
• Pipe series (S): 16
• Material grade: PE 100
• Pressure rating: 4 bar
• Wall thickness: 2.8 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 0.800 kg/m
• Design safety factor: C = 1.6 (σs = 6.25 MPa)
• Color: Black with blue stripes
• Available in coils of 100, 200, 300 up to 1500 meters (for sizes 16-32 mm) and 100-meter coils for sizes 40-160 mm

Ideal for water supply networks, irrigation projects, and sewage systems across Kuwait City, Hawalli, and Al Ahmadi, these pipes ensure reliable and long-lasting service.
