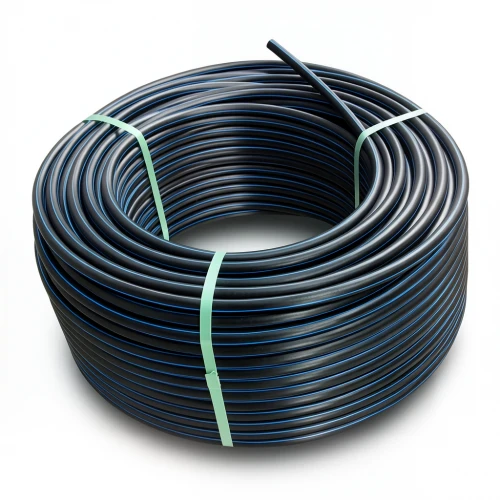

HDPE Plastic Coil Pipe PN 20 Bar [PE 100] OD 140 mm SDR 9 Color Black with Blue Stripes | Almona Factory

This HDPE coil pipe, manufactured by Almona Factory in accordance with DIN 8074/8075, offers a reliable solution for water transportation networks across Kuwait. Made from high-density polyethylene (PE 100), it combines durability with excellent performance, ensuring efficient liquid flow even under demanding conditions.

Key Features

• Pressure rating: 20 bar (PN 20)
• Outside diameter: 140 mm
• Standard Dimension Ratio: SDR 9 (Pipe Series S: 4)
• Wall thickness: 15.7 mm
• Material grade: PE 100 (Minimum Required Strength: 8 MPa)
• Weight: 6.18 kg per meter
• Design safety factor: C = 1.25
• Color: Black with blue stripes
• Available in coils: 100, 200, 300 meters (up to 1500 meters for sizes 16-32 mm); 100-meter coils for sizes 40-160 mm

Advantages for Kuwait

With Kuwait's harsh desert climate and high water demand, this HDPE pipe excels in several ways:

• UV resistance: Withstands prolonged exposure to intense sunlight, making it suitable for above-ground installations.
• Earthquake resilience: High flexibility of the pipe and welded joints absorbs ground movement, a valuable trait in seismic zones.
• Chemical resistance: Handles a wide pH range (2 to 12), protecting against corrosive soils and water treatment chemicals.
• Long service life: Requires minimal maintenance for up to 50 years, reducing operational costs for municipalities and contractors.
• High pressure capability: Ideal for pressurized water networks in urban areas like Kuwait City, Hawalli, and Al Ahmadi.

Whether for potable water distribution, irrigation, or industrial applications, this HDPE coil pipe delivers dependable performance. Its availability in long coils simplifies installation, reducing the number of joints and potential leak points. Choose Almona Factory's HDPE pipes for a durable, cost-effective piping solution that meets the demands of Kuwait's infrastructure projects.
