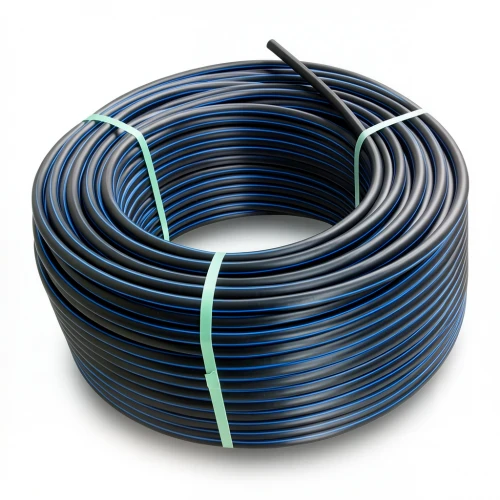

HDPE Plastic Coil Pipe PN 20 Bar [PE 100] OD 125 mm SDR 9 Color Black with Blue Stripes | Almona Factory

Almona Factory presents its premium HDPE coil pipes, engineered for the demanding conditions of Kuwait's water infrastructure. Manufactured to DIN 8074/8075 standards, these pipes are crafted from high-density polyethylene (PE 100), offering exceptional strength and longevity for a wide range of applications.

These pipes are designed to handle high water pressures, making them ideal for municipal water supply networks, agricultural irrigation systems, and industrial fluid transportation. Their flexibility and resistance to seismic activity provide added safety and reliability, especially in Kuwait's urban and industrial zones like Kuwait City and Al Ahmadi. With a service life of over 50 years and minimal maintenance, they are a cost-effective solution for long-term projects.

Key Features

• Material: HDPE (PE 100) – high-density polyethylene
• Pressure rating: 20 bar
• Outside diameter: 125 mm
• Standard dimension ratio: SDR 9
• Pipe series (S): 4
• Wall thickness: 14 mm
• Minimum required strength (MRS): 8 MPa
• Design safety factor: C=1.25
• Weight: 4.92 kg/m
• Color: Black with blue stripes
• Length: Available in coils of 100, 200, 300, and up to 1500 meters (for sizes 16-32 mm), and 100-meter coils for sizes 40-160 mm
• Resistant to UV exposure, chemical corrosion (pH 2-12), and earthquakes
• Manufactured according to DIN 8074/8075

Whether you're upgrading existing networks or building new ones, these HDPE pipes deliver reliable performance in Kuwait's harsh climate, ensuring efficient water flow and long-term durability.
