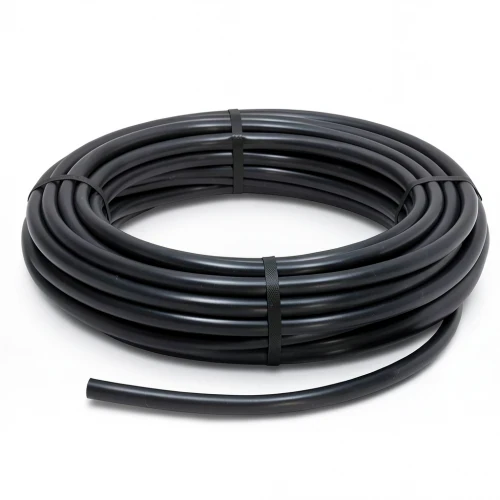

HDPE Plastic Coil Pipe PN 15.7 Bar [PE 63] Outside Diameter 63 mm SDR 6 Color Black | Almona Company

This HDPE coil pipe from Al Mona Company is engineered for demanding water distribution systems, particularly suited for the high-pressure requirements typical in Kuwait's infrastructure and irrigation projects. Made from high-density polyethylene (PE 63), it offers exceptional durability and a maintenance-free service life of up to 50 years.

With a pressure rating of 15.7 bar and an SDR 6 standard dimension ratio, this pipe delivers reliable performance in both potable water and agricultural irrigation networks. Its black color provides UV resistance, while the coil format simplifies handling and installation across long distances, reducing the need for joints.

Key Features

• Outside diameter: 63 mm
• Wall thickness: 5.8 mm
• Pressure rating: 15.7 bar
• Standard dimension ratio: SDR 6
• Pipe series (S): 2.5
• Material grade: PE 63
• Minimum required strength (MRS): 6.3 MPa
• Design stress: 3.94 MPa
• Design safety factor: C=1.6
• Manufactured to DIN 8074/8075
• Available in coil lengths up to 1500 meters for sizes 16-32 mm, and 100-meter coils for sizes 40-160 mm

Ideal for water networks in Kuwait City, Hawalli, and Al Ahmadi, this pipe withstands high operating pressures and external loads, making it a dependable choice for both urban and agricultural applications.
