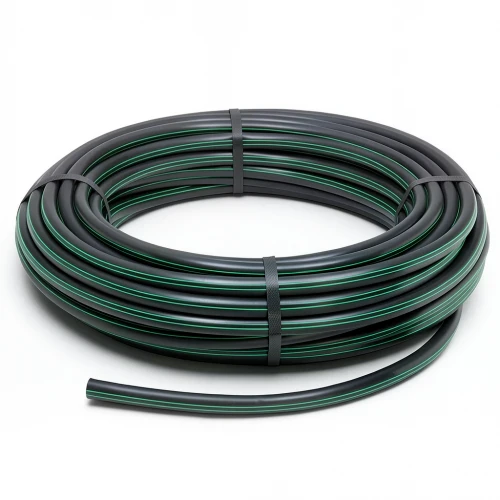

HDPE Plastic Coil Pipe PN 15.7 Bar [PE 63] Outside Diameter 140 mm SDR 6 Color Black with Green Stripes | Almona Factory

This HDPE coil pipe, produced by Almona Factory, is a top-tier solution for water transportation networks in Kuwait. Manufactured to DIN 8074/8075 standards, it combines high-density polyethylene (PE 63) with a robust design to deliver reliable performance under demanding conditions.

Key Features

• Outside diameter: 140 mm
• Standard dimension ratio (SDR): 6
• Pipe series (S): 2.5
• Material grade: PE 63
• Pressure rating: 15.7 bar
• Wall thickness: 23.3 mm
• Minimum required strength (MRS): 6.3 MPa
• Weight: 8.47 kg/m
• Design safety factor: C=1.6, σs = 3.94 MPa
• Color: Black with green stripes
• Length: Coils of 100, 200, 300 meters (up to 1500 m for sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

Performance & Durability

With a 50-year maintenance-free lifespan, this pipe is built to withstand high water pressure, making it ideal for pressurized networks. Its flexibility provides excellent resistance to earthquakes, a valuable trait in Kuwait's seismic context. The pipe also resists UV exposure for extended periods, ensuring longevity in the harsh desert sun.

Chemical Resistance

HDPE material is inert to most chemicals, offering resistance to corrosion and withstanding a pH range of 2 to 12. This makes it suitable for a variety of water qualities and industrial applications.

Applications in Kuwait

Ideal for municipal water supply, irrigation systems, and industrial fluid transport across Kuwait City, Hawalli, and Al Ahmadi. Its coil format simplifies handling and installation, reducing labor and logistics costs for projects of all scales.
