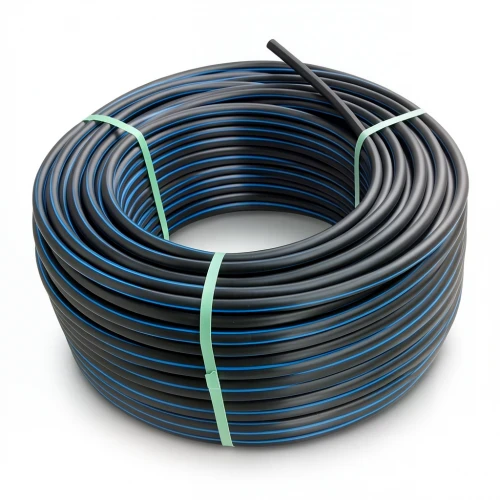

HDPE Plastic Coil Pipe PN 15.6 Bar [PE 100] OD 90 mm SDR 9 Color Black with Blue Stripes | Almona Factory

Almona Factory presents HDPE coil pipes, engineered for reliable water transportation in Kuwait's demanding environment. Manufactured to DIN 8074/8075, these pipes combine high-density polyethylene (PE100) with a robust design to deliver long-lasting performance.

Designed to withstand high water pressure, these pipes are ideal for municipal and industrial water networks, especially in areas like Kuwait City and Al Ahmadi where consistent supply is critical. With a 50-year maintenance-free lifespan, they reduce operational costs and downtime.

Their flexibility and welded joint strength provide exceptional resistance to earthquakes and ground movement, while UV resistance ensures durability under Kuwait's intense sun. The pipes also resist chemical corrosion, handling a pH range of 2 to 12, making them versatile for various applications.

Key Specifications

• Outside diameter: 90 mm
• Standard dimension ratio: SDR 9
• Pipe series (S): 4
• Material grade: PE 100
• Pressure rating: 15.6 bar
• Wall thickness: 10.1 mm
• Minimum required strength (MRS): 10 MPa
• Weight: 2.57 kg/m
• Design safety factor: C = 1.6 (σs = 6.25 MPa)
• Color: Black with blue stripes
• Length: Coils of 100, 200, 300, up to 1500 meters (for sizes 16–32 mm); 100-meter coils for sizes 40–160 mm

Available in various sizes to meet project requirements, these pipes are easy to transport and install, saving time and labor on site. Choose Almona Factory for quality and performance in every meter.
