HDPE Plastic Coil Pipe PN 12.5 Bar [PE 80] OD 90 mm SDR 11 Color Black | Almona Factory

Product Overview

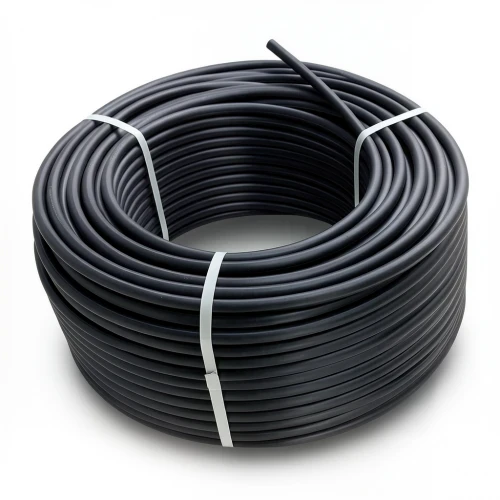

This HDPE coil pipe, manufactured by Almona Factory, is a reliable solution for water transportation networks across Kuwait. With a PE 80 material grade, SDR 11 standard dimension ratio, and a pressure rating of 12.5 bar, it delivers consistent performance in demanding conditions. The pipe's high-density polyethylene construction ensures strength, durability, and resistance to high temperatures, pressure, and corrosion.

Key Features

• Outer diameter: 90 mm
• Standard dimension ratio: SDR 11
• Material grade: PE 80
• Pressure rating: 12.5 bar
• Wall thickness: 8.2 mm
• Minimum required strength (MRS): 8 MPa
• Design stress (σs): 6.4 MPa
• Design safety factor: C=1.25
• Color: Black
• Length: Coils available in 100, 200, and 300 meters, up to 1500 meters for sizes 16 mm to 32 mm; 100-meter coils for sizes 40 mm to 160 mm

Applications in Kuwait

Ideal for potable water distribution, irrigation systems, and industrial fluid handling, this pipe is well-suited for Kuwait's harsh climate. Its resistance to ultraviolet rays and chemical corrosion ensures long service life in outdoor installations, while its flexibility and lightweight nature simplify handling and installation across projects in Kuwait City, Hawalli, and Al Ahmadi.

Compliance and Quality

Produced in accordance with ISO 4427-2, this pipe meets international standards for quality and safety. It withstands ground pressures and strong operational demands, making it a dependable choice for both residential and commercial infrastructure projects.
